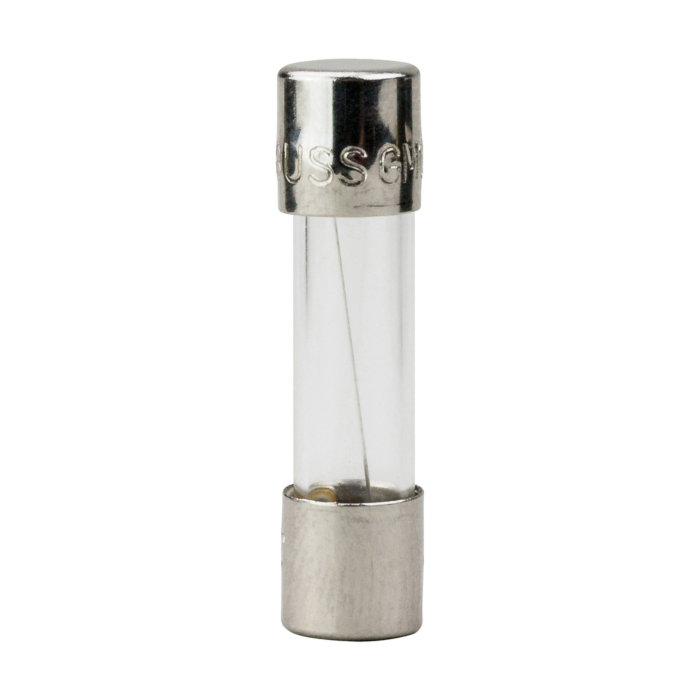

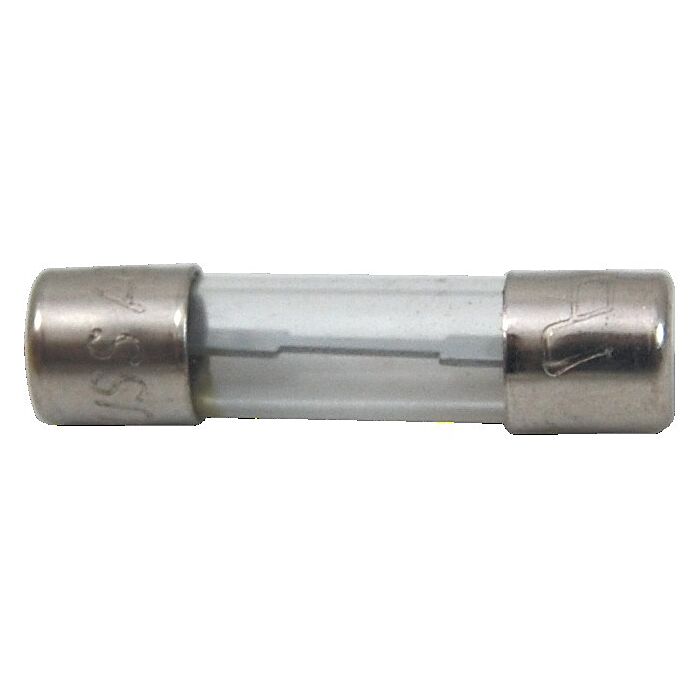

Eaton Bussmann series fast-acting fuse
SKU: AGX20
$6.79
Features
Specifications
Downloads
Eaton Bussmann series fast-acting fuse
| Brand | Bussmann |
|---|---|
| UPC | 051712704830 |
| Store Location (Lititz, PA) | Aisle 14, Section N1 |
| Package Length (in) | 3.60" |
| Package Width (in) | 3.00" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | AGX-20 |
| Height | 1 IN |
| Length | .252 IN |
| Width | .252 IN |
| Weight | .02 LB |
| Type | Electronic- small dimension |
| Application | Electronic circuits |
| Voltage Rating | 250 Vac, 32 Vdc |
| Amperage Rating | 20A |
| Interrupt Rating | 200 AIC at 125 Vac, 1 kAIC at 32 Vac |
| Connection | Ferrule end X ferrule end |
| Packaging Type | Standard |
| Fuse Indicator | Non Indicating |
| Response Time | 4 hr minimum at 110%, 60 min maximum at 135%, 5 s maximum at 200%, 2 min maximum at 200% |
