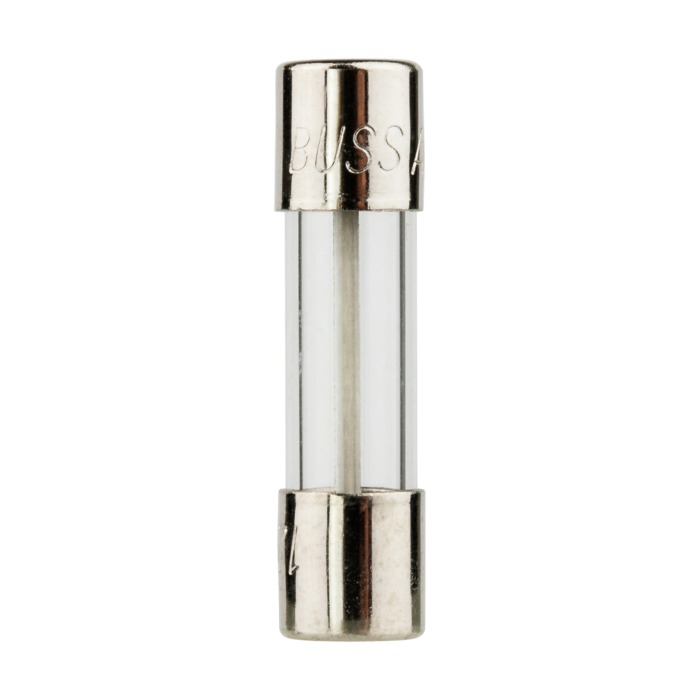

Eaton Bussmann series fast-acting fuse
SKU: AGX30
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$6.49
Features
Specifications
Downloads
Eaton Bussmann series fast-acting fuse
| Brand | Bussmann |
|---|---|
| UPC | 051712704854 |
| Store Location (Lititz, PA) | Aisle 14, Section N1 |
| Package Length (in) | 4.00" |
| Package Width (in) | 2.80" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | AGX-30 |
| Height | 1 IN |
| Length | .252 IN |
| Width | .252 IN |
| Weight | .02 LB |
| Type | Electronic- small dimension |
| Application | Electronic circuits |
| Voltage Rating | 125 Vac, 32 Vdc |
| Amperage Rating | 30A |
| Interrupt Rating | 100 AIC at 125 Vac, 1 kAIC at 32 Vac |
| Connection | Ferrule end X ferrule end |
| Packaging Type | Standard |
| Fuse Indicator | Non Indicating |
| Response Time | 4 hr minimum at 110%, 60 min maximum at 135%, 5 s maximum at 200% |
