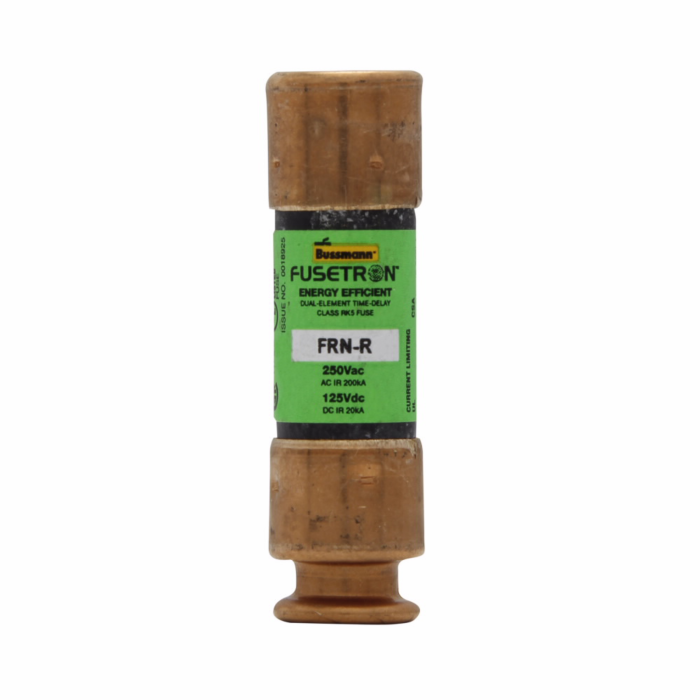

Eaton Bussmann series FRN-R fuse, 3 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 8 sec at 500%, 200 kAIC at 250 V,20 kAIC at 125 Vdc, Standard, 250 V, 125 Vdc
SKU: 62433
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$12.99
Features
Specifications
Downloads
Eaton Bussmann series FRN-R fuse, 3 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 8 sec at 500%, 200 kAIC at 250 V,20 kAIC at 125 Vdc, Standard, 250 V, 125 Vdc
| Brand | Bussmann |
|---|---|
| UPC | 051712506991 |
| Store Location (Lititz, PA) | Aisle 08, Section D3 |
| Package Length (in) | 0.40" |
| Package Width (in) | 1.00" |
| Package Height (in) | 1.00" |
| Manufacturer Part Number | FRN-R-3 |
| Class | Class RK5 |
| Connection | Ferrule end x ferrule end |
| Fuse indicator | Non-indicating |
| UPC | 051712506991 |
| Product Length/Depth | .56 in |
| Product Height | .56 in |
| Product Width | .56 in |
| Product Weight | .04 lb |
| Warranty | Not Applicable |
| Compliances | CE Marked |
| Number of elements | Dual |
| Packaging type | Standard |
| Amperage Rating | 3 A |
| Interrupt rating | 200 kAIC at 250 Vac |
| Response time | 8 sec at 500% |
| Voltage rating | 250 Vac, 125 Vdc |
