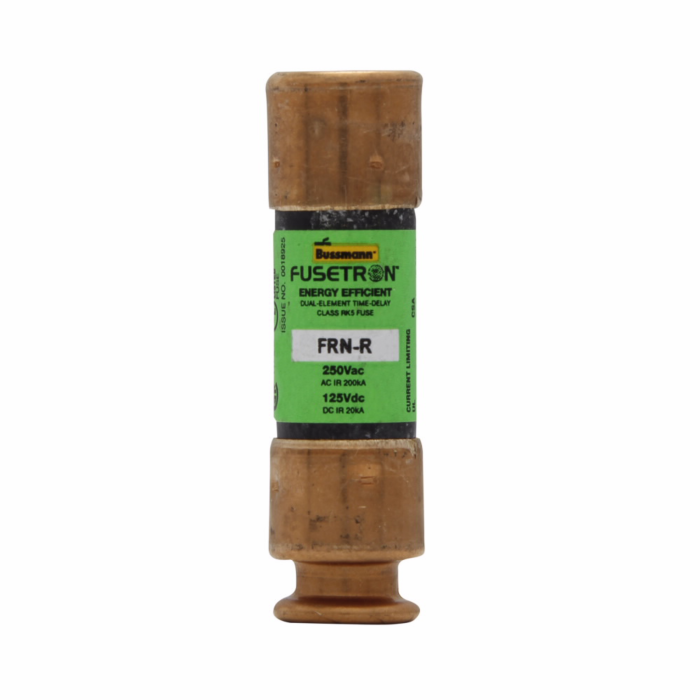

Eaton Bussmann series FRN-R fuse, 30 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 8 sec at 500%, 20 kAIC at 125 Vdc,200 kAIC at 250 V, Standard, 250 V, 125 Vdc
SKU: 523918
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$13.99
- Buy 10 for $12.59 each and save 10%
Features
Specifications
Downloads
Eaton Bussmann series FRN-R fuse, 30 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 8 sec at 500%, 20 kAIC at 125 Vdc,200 kAIC at 250 V, Standard, 250 V, 125 Vdc
- Bussmann Series fusetron cartridge fuses are 23% more energy efficient and offer the best time-delay performance
| Brand | Bussmann |
|---|---|
| UPC | 051712101769 |
| Package Length (in) | 0.50" |
| Package Width (in) | 2.75" |
| Package Height (in) | 5.50" |
| Manufacturer Part Number | FRN-R-30 |
| Amperage Rating | 30 A |
| Interrupt rating | 200 kAIC at 250 Vac |
| Response time | 8 sec at 500% |
| Voltage rating | 250 Vac, 125 Vdc |
| UPC | 051712101769 |
| Product Length/Depth | 3 in |
| Product Height | .81 in |
| Product Width | .81 in |
| Product Weight | 1.95 lb |
| Warranty | Not Applicable |
| Compliances | CE Marked |
| Class | Class RK5 |
| Connection | Ferrule end x ferrule end |
| Fuse indicator | Non-indicating |
| Number of elements | Dual |
| Packaging type | Standard |
