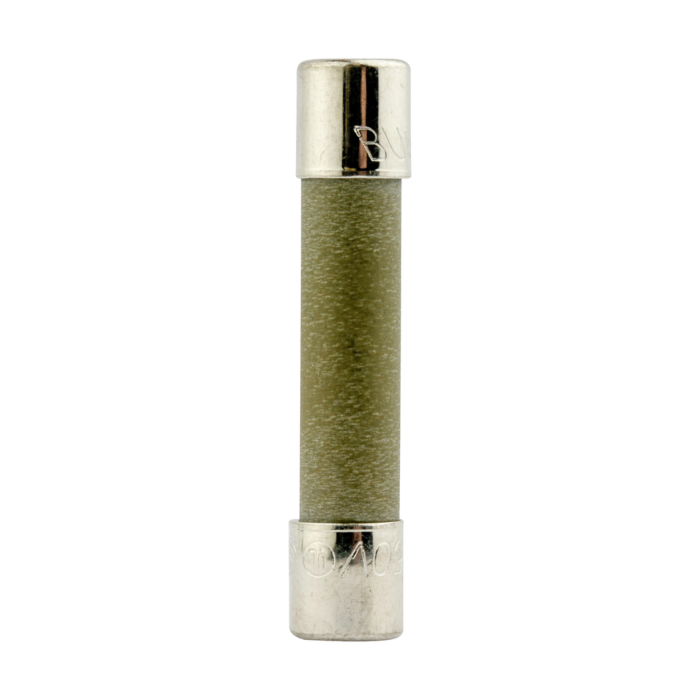

Eaton Bussmann series time-delay fuse
SKU: MDA20
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$22.99
Features
Specifications
Downloads
Eaton Bussmann series time-delay fuse
| Brand | Bussmann |
|---|---|
| UPC | 051712542494 |
| Store Location (Lititz, PA) | Aisle 08, Section D3 |
| Package Length (in) | 0.20" |
| Package Width (in) | 1.40" |
| Package Height (in) | 1.40" |
| Manufacturer Part Number | MDA-20-R |
| Height | .25 IN |
| Length | 1.25 IN |
| Width | .25 IN |
| Weight | .005 LB |
| Type | Electronic |
| Application | Electronic Circuits |
| Voltage Rating | 250 Vac, 125 Vdc |
| Amperage Rating | 20A |
| Interrupt Rating | 1.5 kAIC at 250 Vac, 10 kAIC at 125 Vac/dc |
| Connection | Ferrule end X ferrule end |
| Material Type | Ceramic tube, nickel-plated brass endcaps |
| Packaging Type | Standard |
| Diameter | .25 IN |
| Melting (L2T) | Typical: 483.45 |
| Resistance | Typical DC cold: .004065 ohms |
| Voltage Drop | Typical: .095 mV |
| Fuse Indicator | Non Indicating |
| Response Time | 60 min. maximum at 135%, 120 secs. maximum at 200% |
