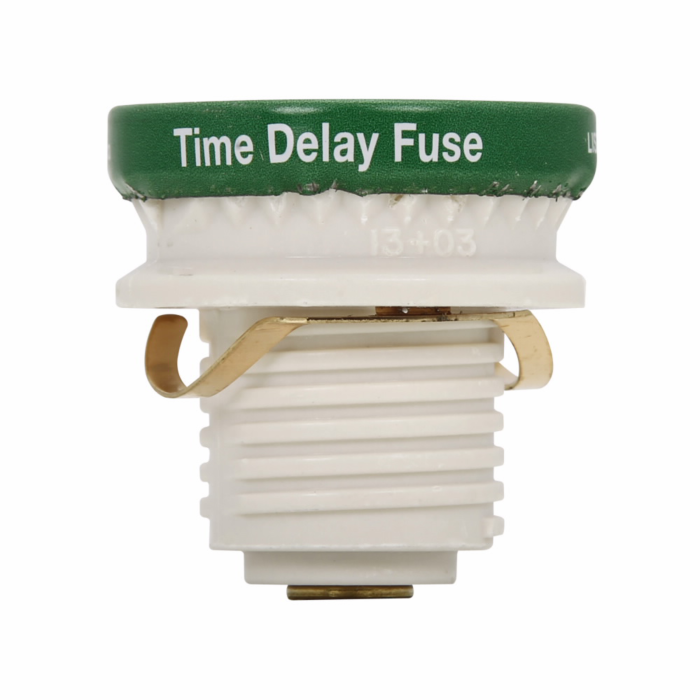

Eaton Bussmann series Type SL plug fuse, plug fuse, time delay, packaging quantity 4, 30 A, 125 Vac, 10 kAIC (RMS Symmetrical) interrupt rating, 10 kA short circuit rating, threaded mount, rejection base
SKU: 511814
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$12.99
Features
Specifications
Downloads
Eaton Bussmann series Type SL plug fuse, plug fuse, time delay, packaging quantity 4, 30 A, 125 Vac, 10 kAIC (RMS Symmetrical) interrupt rating, 10 kA short circuit rating, threaded mount, rejection base
- Medium-duty time delay rejection base fuse
| Brand | Edison |
|---|---|
| UPC | 051712418331 |
| Store Location (Lititz, PA) | Aisle 08, Section D3 |
| Package Length (in) | 2.40" |
| Package Width (in) | 1.00" |
| Package Height (in) | 1.00" |
| Manufacturer Part Number | SL-30PK4 |
| UPC | 051712418331 |
| Product Length/Depth | 1.25 in |
| Product Height | 1.25 in |
| Product Width | 1.25 in |
| Product Weight | .037 lb |
| Compliances | Contact factory |
| Special features | Packaging quantity 4 |
| Interrupt rating | 10 kAIC |
| Type | Time delay |
| Mounting method | Threaded |
| Voltage rating | 125 V |
| Application | Residential or light-duty motor circuits |
| Amperage Rating | 30 A |
| Base | Rejection |
