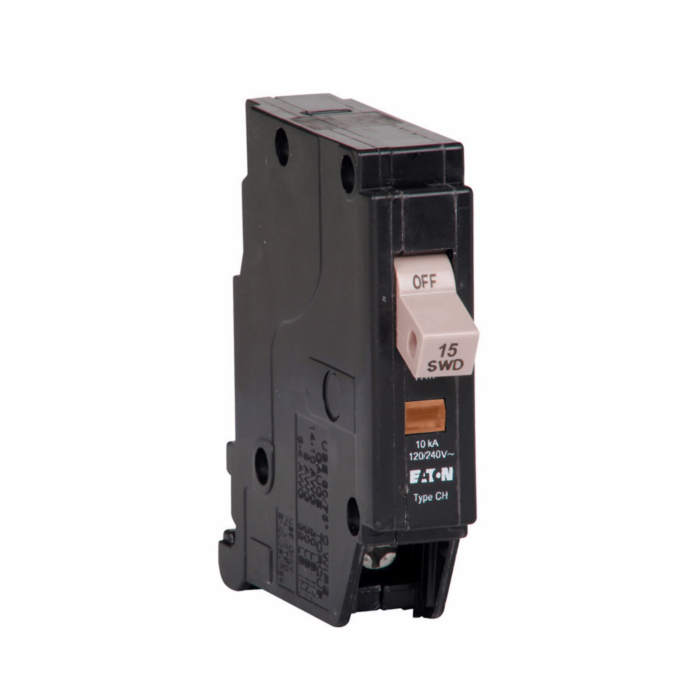

Eaton CH thermal magnetic circuit breaker
- Easy to install
Brand | Eaton |
---|---|
UPC | 786685361833 |
Store Location (Lititz, PA) | Aisle 08, Section D2 |
Package Length (in) | 3.40" |
Package Width (in) | 2.60" |
Package Height (in) | 0.40" |
Manufacturer Part Number | CHF115 |
UPC | 786685361833 |
Product Length/Depth | .7 IN |
Product Height | 2.6 IN |
Product Width | 3.2 IN |
Product Weight | .25 LB |
Warranty | Limited lifetime residential, 1 year commercial |
Compliances | HACR Rated |
Certifications | UL 489 |
Catalog Notes | Switching Duty Rated, HACR Rated, Single-Pole Requires One 2/4-Inch Space, With Trip Indication. |
Interrupt Rating | 10 kAIC |
Type | Type CHF 3/4-Inch standard circuit breaker |
Wire Size | (1) #14-8 AWG, (2) #14-10 AWG Cu/Al |
Circuit Breaker Type | CHF |
Used With | Type CH Loadcenters |
Main Circuit Breaker | CHF |
Voltage Rating | 120/240 V |
Amperage Rating | 15A |
Trip Type | Trip flag |
Number Of Poles | Single-pole |
