CH thermal magnetic circuit breaker
SKU: ECH120
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$14.99
Features
Specifications
Downloads

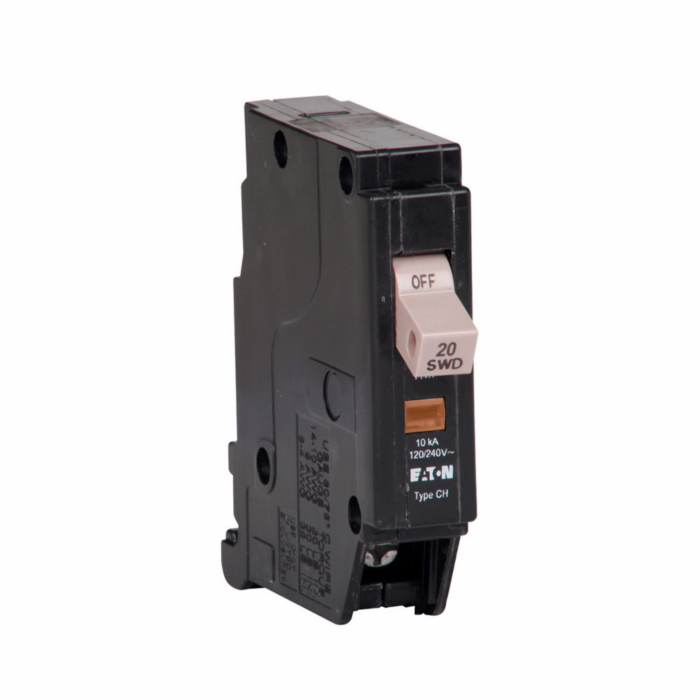

Eaton CH thermal magnetic circuit breaker
- Easy to install
| Brand | Eaton |
|---|---|
| UPC | 786685361840 |
| Store Location (Lititz, PA) | Aisle 08, Section D2 |
| Package Length (in) | 3.40" |
| Package Width (in) | 2.60" |
| Package Height (in) | 0.40" |
| Manufacturer Part Number | CHF120 |
| Interrupt Rating | 10 kAIC |
| Type | Type CHF 3/4-Inch standard circuit breaker |
| Wire Size | (1) #14-8 AWG, (2) #14-10 AWG Cu/Al |
| Circuit Breaker Type | CHF |
| Used With | Type CH Loadcenters |
| Main Circuit Breaker | CHF |
| Voltage Rating | 120/240 V |
| Amperage Rating | 20A |
| Trip Type | Trip flag |
| Number Of Poles | Single-pole |
| UPC | 786685361840 |
| Product Length/Depth | 3 IN |
| Product Height | 3 IN |
| Product Width | .75 IN |
| Product Weight | .28 LB |
| Warranty | Limited lifetime residential, 1 year commercial |
| Compliances | HACR Rated |
| Certifications | UL 489 |
| Catalog Notes | Switching Duty Rated, HACR Rated, Single-Pole Requires One 3/4-Inch Space, With Trip Indication. |
