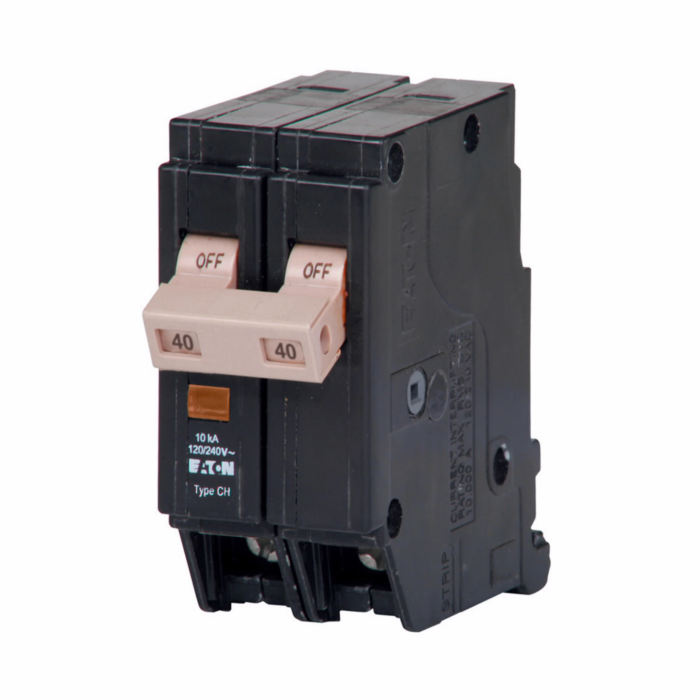

CH Thermal magnetic circuit breaker, Type CHF 3/4-Inch standard circuit breaker, 40 A, 10 kAIC, Two-pole, 120/240V, CHF, Trip flag, common breaker trip, #10-1/0 AWG Cu/Al, CHF, Type CH Loadcenters
SKU: ECH240
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$34.99
Features
Specifications
Downloads
Eaton CH Thermal magnetic circuit breaker, Type CHF 3/4-Inch standard circuit breaker, 40 A, 10 kAIC, Two-pole, 120/240V, CHF, Trip flag, common breaker trip, #10-1/0 AWG Cu/Al, CHF, Type CH Loadcenters
- Easy to install
| Brand | Eaton |
|---|---|
| UPC | 786685532165 |
| Store Location (Lititz, PA) | Aisle 08, Section D2 |
| Package Length (in) | 3.40" |
| Package Width (in) | 2.60" |
| Package Height (in) | 1.40" |
| Manufacturer Part Number | CHF240 |
| UPC | 786685532165 |
| Product Length/Depth | 1.5 in |
| Product Height | 2.6 in |
| Product Width | 3.3 in |
| Product Weight | .55 lb |
| Warranty | Limited lifetime residential, 1 year commercial |
| Compliances | HACR Rated |
| Certifications | UL 489 |
| Catalog Notes | HACR Rated. Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces. With Trip Indication |
| Interrupt rating | 10 kAIC |
| Type | Type CHF 3/4-Inch standard circuit breaker |
| Wire size | #10-1/0 AWG Cu/Al |
| Circuit breaker type | CHF |
| Used with | Type CH Loadcenters |
| Main circuit breaker | CHF |
| Voltage rating | 120/240 V |
| Amperage Rating | 40 A |
| Trip Type | Trip flag |
| Number of poles | Two-pole |
