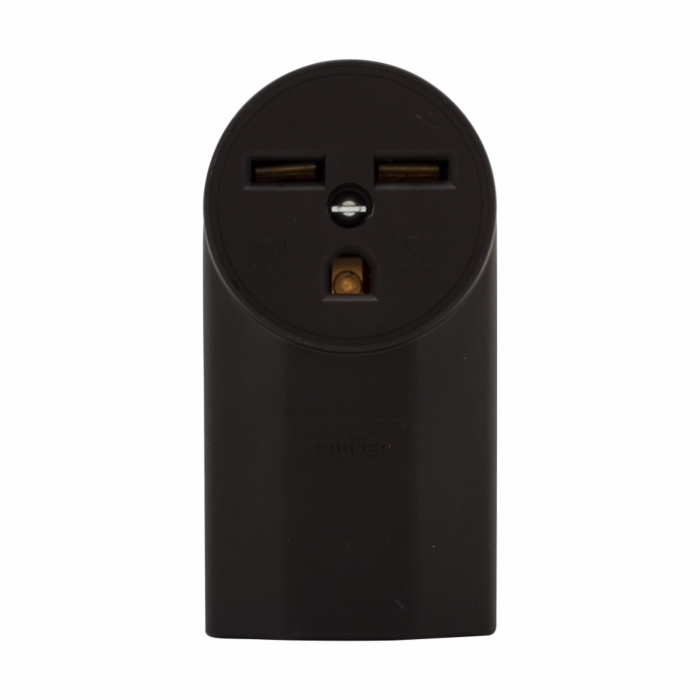

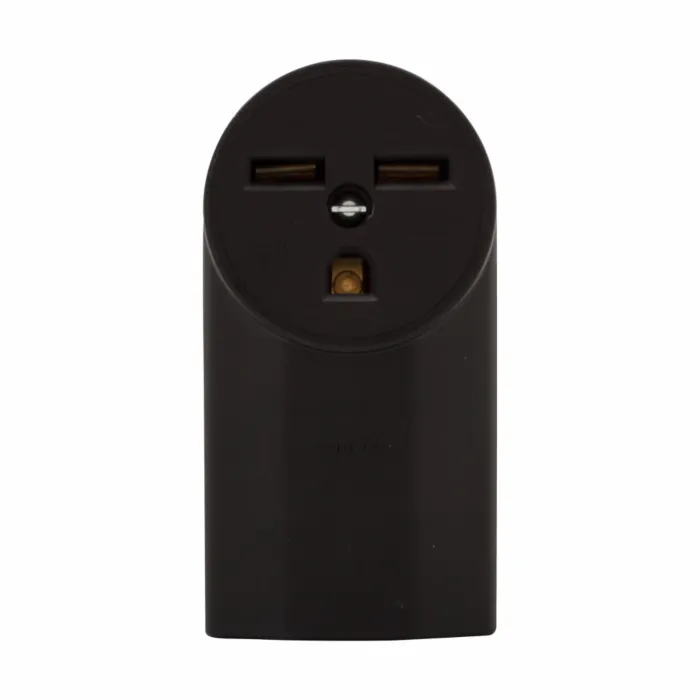

power device receptacle, #12 - 4 AWG, 30A, Surface, 250V, Back, Black, NEMA 6-30R, Two-pole, Three-wire, Two-pole, three-wire, grounding, Screw, Glass-filled nylon, Power, Used with S42
SKU: 1232BK
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$17.99
Features
Specifications
Downloads
Eaton power device receptacle, #12 - 4 AWG, 30A, Surface, 250V, Back, Black, NEMA 6-30R, Two-pole, Three-wire, Two-pole, three-wire, grounding, Screw, Glass-filled nylon, Power, Used with S42
- Flush receptacles feature heavy-gauge galvanized steel mounting strap and glass reinforced nylon body
| Brand | Eaton |
|---|---|
| UPC | 032664306105 |
| Store Location (Lititz, PA) | Aisle 08, Section C3 |
| Package Length (in) | 2.00" |
| Package Width (in) | 3.60" |
| Package Height (in) | 3.60" |
| Manufacturer Part Number | 1232 |
| UPC | 032664306105 |
| Product Length/Depth | 2.129 in |
| Product Height | 4.817 in |
| Product Width | 2.428 in |
| Product Weight | .725 lb |
| Compliances | RoHS Compliant |
| Certifications | cULus Listed |
| Color | Black |
| Wiring method | Back |
| Material | Glass filled nylon |
| Mounting method | Surface |
| Allowable wire size | #12-4 AWG |
| Amperage Rating | 30A |
| Number Of Poles | Two-pole |
| NEMA configuration | 6-30R |
| Used with | S42 |
| Design type | Receptacle |
| Connection type | Screw |
| Style | Power |
| Number of wires | 3 |
| Receptacle type | Two-pole, three-wire, grounding |
| Voltage rating | 250 V |
