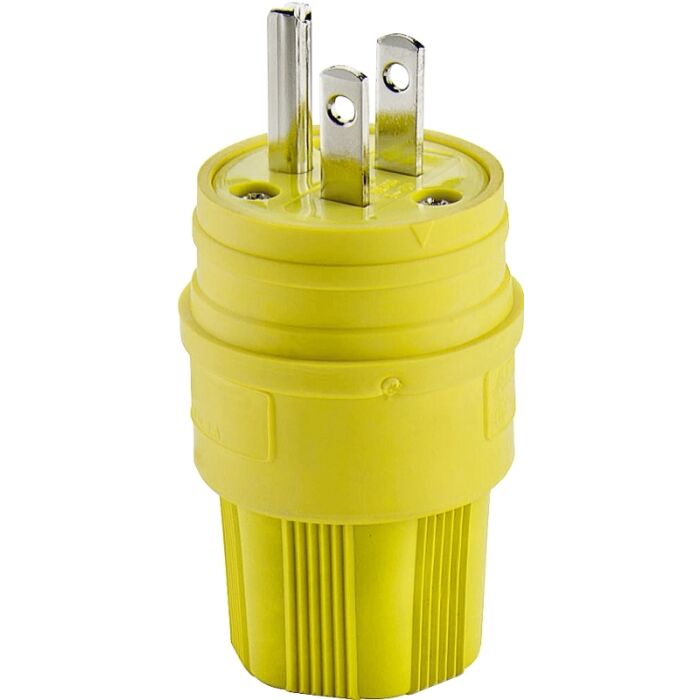

14W47-K Electrical Plug, 2 -Pole, 15 A, 125 V, IP66, NEMA: NEMA 5-15, Yellow
SKU: 5873161
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$26.99
Features
Specifications
Used for marine applications in areas of water or moisture. Thermoplastic elastomeric (TPE) exterior. Glass filled nylon and glass filled polypropylene interior. 15 A, 125 V. Temperature rating of -40 to 70 deg C. Listed to UL 498 (file no.E3663) and watertight. NEMA 5-15.
- Thermoplastic elastomeric exteriors outperform rubber when exposed to moisture, chemicals, oils and the effects of ultraviolet radiation and ozone attack
| Brand | Eaton |
|---|---|
| UPC | 032664666902 |
| Package Length (in) | 6.00" |
| Package Width (in) | 3.60" |
| Package Height (in) | 2.00" |
| Manufacturer Part Number | 14W47-K |
| Cable/Wire Size | 19/64 to 21/32 in |
| Color | Yellow |
| Current Rating | 15 A |
| Dimensions | 3.44 in L x 1.81 in W |
| Grounding Type | Grounded |
| IP Rating | IP66 |
| Material | Thermoplastic |
| NEMA Configuration | NEMA 5-15 |
| Number of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temperature | -40 to 70 deg C |
| Type | Watertight |
| Voltage Rating | 125 V |
