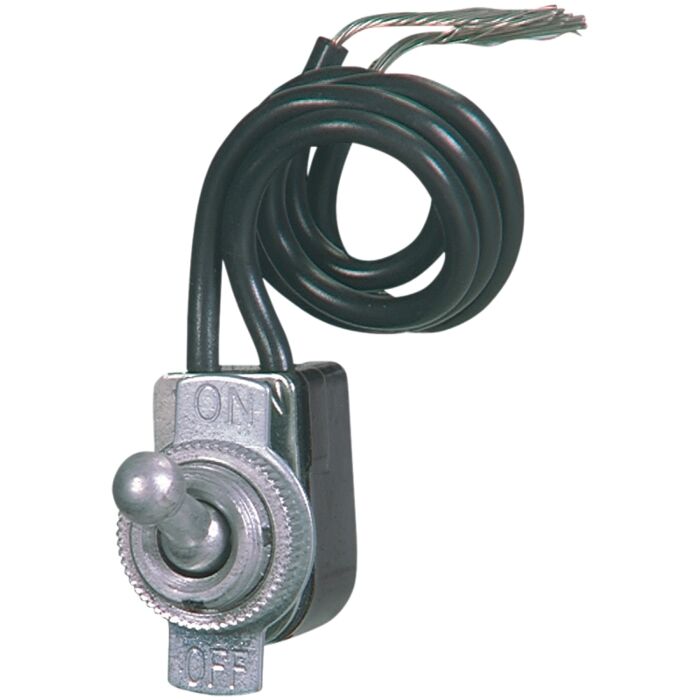

SPST On-Off Toggle Switch with Leads
SKU: DC73105
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$6.79
Features
Specifications
Meets all UL 20 requirements. Shank is threaded 15 - 32 in, 32 in x 9/32 in long. Keyed shank, indicator plate and finishing nut furnished. Wire leads are 6 in long #18, stripped 3/4 in. Metal On/Off bat handle. Temperature rating -40 to 65 deg C.
- Keyed shank, indicator plate and finishing nut furnished
| UPC | 032664232602 |
|---|---|
| Store Location (Lititz, PA) | Aisle 08, Section D5 |
| Package Length (in) | 7.50" |
| Package Width (in) | 0.63" |
| Package Height (in) | 1.50" |
| Actuator Type | Toggle |
| Color | Silver |
| Contact Configuration | SPST |
| Current Rating | 3/6 A |
| Dimensions | 1/2 in W x 17/32 in D x 7/8 in H |
| Housing Material | Polycarbonate |
| Mounting Type | Bushing |
| Number of Poles | 1 |
| Switch Operation | Canopy |
| Temperature Rating | 40 to 65 deg C |
| Voltage Rating | 125/250 V |
