Timken

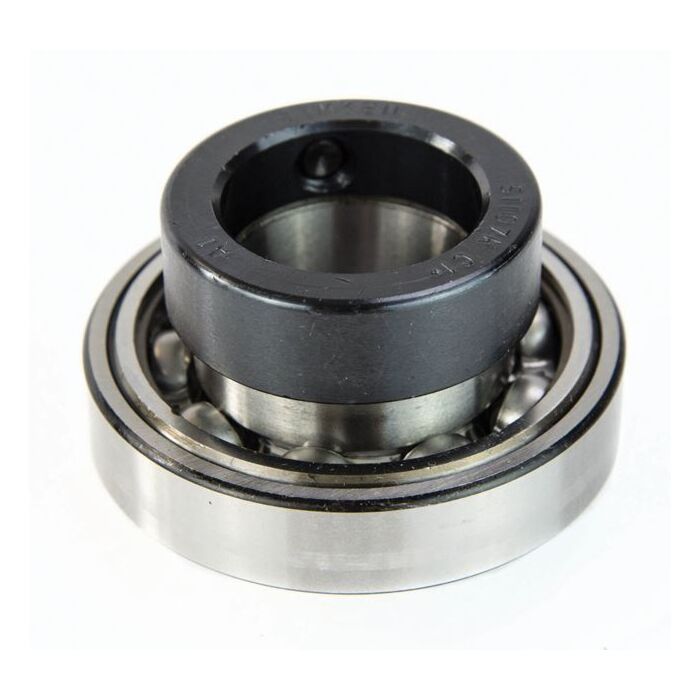

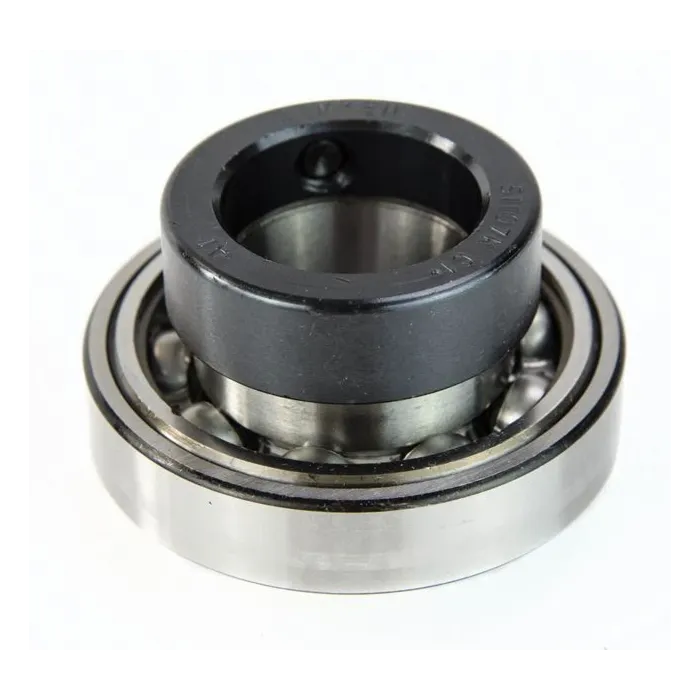

Eccentric Pre-Greased Locking Collar Ball Bearings Insert - 1-3/16 in.
SKU: RA103RRB
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$53.03
Features
Specifications
Timken Insert 1-3/16" Pre-Greased
| Brand | Timken |
|---|---|
| UPC | 087796053465 |
| Manufacturing Part Number | RA103RRB + COL |
| Series | Standard |
| Shaft Size d | 1-3/16" |
| Bore Type | Cylindrical bore |
| Bearing Type | Ball Bearing |
| Material | Bearing Steel |
| Lubrication Type | Non-Relubricatable |
| O.D. Type | Spherical OD |
| Sub Series | RA…RRB |
| Seal Type | Molded Shroud |
| Outside Diameter D | 2.441" |
| Inner Ring Width B | 0.938" |
| Outside Ring Width C | 0.709" |
| Radius r | 0.024" |
| Center of Bearing from End S | 0.354" |
| Set Screw Size | 5/16-18 |
| Number of Set Screws | 2 |
| Angle between Set Screws | 90º |
| Dimension d1 | 1.736" |
| Dimension B1 | 1.406" |
| Dimension B2 | 0.626" |
