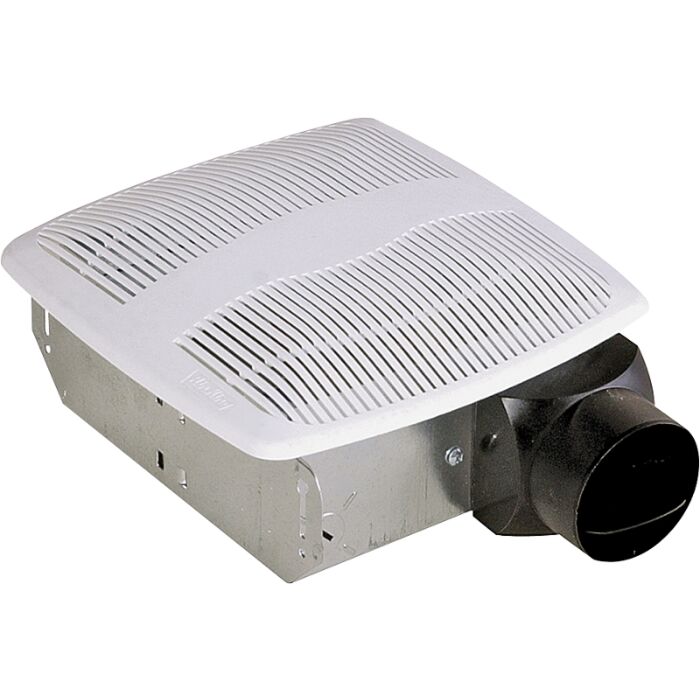

70 CFM @ 4.0 sones
- Easily installs using the double thick keyhole mounting tabs.
- Slim 3.75" housing allows the unit to be installed into wall applications.
- UL Listed for installation over a tub or shower on a GFCI circuit.
- 3" Plastic damper protects against backdrafts and ensures quiet operation.
- Available in contractor packs (6 housings and 6 trim kits).
- HVI Certified performance.
- Exhaust Fan Housing
- Blower (motor)
- Damper and Duct Collar
- Grill
- User Manual
Brand | Air King |
---|---|
UPC | 083162273116 |
Store Location (Lititz, PA) | Aisle 05, Section D4 |
Package Length (in) | 10.40" |
Package Width (in) | 4.60" |
Package Height (in) | 12.80" |
Manufacturer Part Number | AS70 |
AKEDT2 | Control Switch |
RCB810 | Rood Cap Ducting Kit |
WC3NS | Wall Cap |
Models | AS70 |
CFM | 70 |
Sones | 4 |
Sound Level | Moderate |
Effective Ventilation Area | 70 to 85 sq. ft. |
ENERGY STAR® qualified | No |
Can be used to Comply with California Title 24 requirements | No |
CALGreen | No |
Duct Size | 3" round |
Collar / Damper | Plastic |
Mounting | Mounting Tabs |
Housing | Metal |
Fan Housing Dimensions | 71 /4" x 71 /4" x 33 /4" |
Box Dimensions | 11" x 10-3/8" x 4-3/4" |
