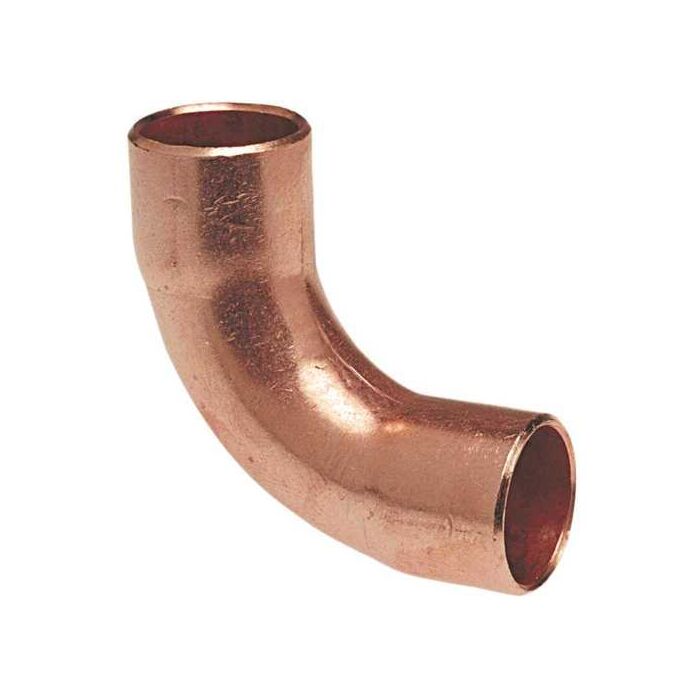

Elbow 1/2 in Copper Pressure Cup Long Radius Elbow
SKU: L58CR
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$8.49
Features
Specifications
The NIBCO 90 deg elbow features a solder cup, male solder end and a close rough radius. The fitting provides a means of changing the pipeline direction 90 deg . They are used when velocity is not a problem. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. In addition to its inherent qualities of beauty, durability and low maintenance, copper's reusability makes it an ideal application in sustainable projects. NIBCO copper fittings are manufactured in an ISO 9001 certified facility and backed by a 50-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.
- ASTM B75 alloy C12200
- Third-party certified to NSF/ANSI 61 and 372
- Material and workmanship per ASME B16.22
- Material, workmanship and dimensions per MSS SP-104
- NFPA 99 health care facilities gas and vacuum systems and the compressed gas association, pamphlet G4.1 (medical gas)
- Lead free
| UPC | 685768209294 |
|---|---|
| Store Location (Lititz, PA) | Aisle 05, Section H5 |
| Package Length (in) | 2.00" |
| Package Width (in) | 1.80" |
| Package Height (in) | 0.60" |
| Fitting Type | Elbow |
| Fitting Size | 1/2 in |
| Connection Type | Copper Pressure Cup |
| Angle | 90 deg |
| Diameter | 5/8 in |
| Material | Copper |
| Material Standard | ASTM B75 Alloy C12200 |
