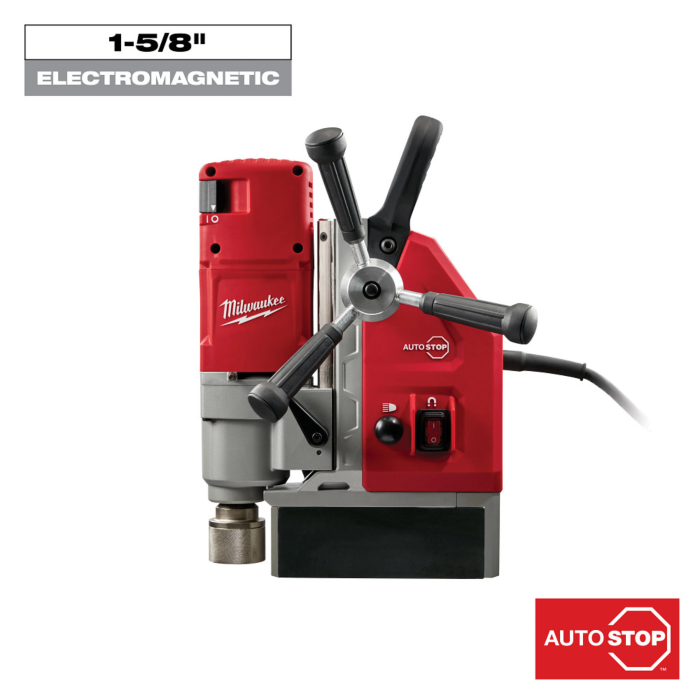

The Milwaukee 1-5/8 in. electromagnetic drill will deliver faster set-up, cutting and drilling. It’s 13 amp motor delivers the fastest drilling w/ annular cutters or twist drill bits. Equipped with a 2-speed gear box the tool can be adjusted tool-free between annular cutters at 475 RPM and twist drill bits at 730 RPM.
- Powerful 13 Amp motor
- Tool free adjustment: cutter to twist bit
- Optimized cutting & drilling speeds
- Tool free motor head adjustment
- 3/4 in. Weldon quick change Arbor
- 2 Speed gear box: 475/730 RPM
- Auto-stop lift-off detection
- Tool free feed-handle
- LED light
| Brand | Milwaukee |
|---|---|
| UPC | 045242346479 |
| Store Location (Lititz, PA) | Aisle 27, Section N5 |
| Package Length (in) | 8.40" |
| Package Width (in) | 28.00" |
| Package Height (in) | 22.00" |
| Manufacturer Part Number | 4272-21 |
| Country of Origin | China |
| Color / Finish | Red/Black |
| Length | 11.25 Inches |
| Width | 7.5 Inches |
| Height | 15.5 Inches |
| Net Tool Weight | 30.0 lbs |
| Drill Press Type | Portable |
| Speed Range High (rpm) | 730.000000 |
| Speed Range Low (rpm) | 470.000000 |
| Spindle Travel | 5.750000 in |
| Chuck Design | Keyless |
| Chuck Key Storage | No |
| Integrated Laser Guide | No |
| Speeds | 2 |
| Table Material | Steel |
| Amperage (A) | 13.0 |
| Voltage | 120 Volts |
| Chuck Capacity | 3/4 IN Weldon |
| 360° Swivel | No |
| CSA Certified | Yes |
| ETL Listed | Yes |
| UL Listed | Yes |
| Package Contents | (1) Electromagnetic Drill Kit; (2) Pilot Pins; (1) Weldon to Chuck Adapter; (1) Chuck Key; (1) Lubrication Spray Bottle; (1) Safety Strap; (1) Carrying Case |
