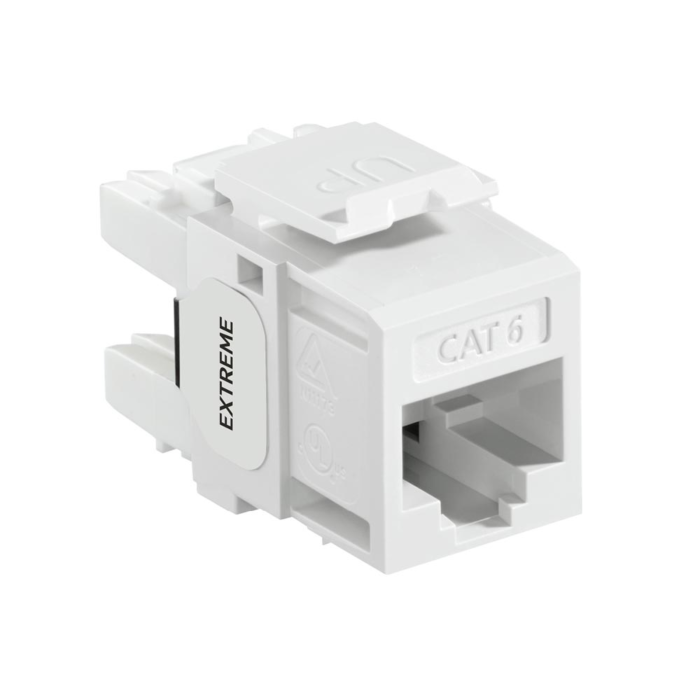

The EXTREME Category 6 jack is designed to be used with all QUICKPORT compatible products. The jack includes patented Retention Force Technology™ which promotes consistent performance over the life of the system. It features unique pair separation towers allowing for quicker and easier terminations. The jack is built on a 180-degree configuration with the punch field in the back, allowing for rear termination.
- ECD147723-0001
- GB2562884
- HK0410472.5
- MX249737
- MX295578
- TWI285985
- US6786776
- US7547227
- US7980890
- Terminates 26 to 22 AWG solid conductors and 24 to 22 AWG stranded conductors
- Terminates 26 AWG stranded conductors up to 5 times
- Capable of multiple re-terminations
- Gas-tight IDC jacks prevent corrosion
- Dual-layer T568B/T568A wiring label simplifies punchdown
- Patented Retention Force Technology protects tines from damage and increases system longevity
- Pair Separation Tower design facilitates separation of conductors and minimizes untwisting
- 180-degree configuration allows for rear termination
- Available in 13 ANSI/TIA-606-C compatible colors for color coding or organization
- Available individually, in bulk packages of 25, and in bulk packages of 150 with a JackRapid™ Punchdown Tool
- Select colors available in 200 pack Sustainably Smart Packaging that uses no single-use plastic and is fully recyclable
- Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
- ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
Brand | Leviton |
---|---|
UPC | 078477144596 |
Store Location (Lititz, PA) | Aisle 09, Section C2 |
Package Length (in) | 4.00" |
Package Width (in) | 6.00" |
Package Height (in) | 6.00" |
Manufacturer Part Number | 122-61110-RW6 |
CSA | Certified |
FCC | Part 68 Compliant |
NEC | Article 800 Compliant |
TIA/EIA | TIA-568-B |
UL | cULus Listed |
Body Color | White |
Body Material | High-Impact Fire-Retardant Plastic |
Contact Base Material | Phosphor Bronze |
Contact Sub-Surface Material | 100 microinches thick Nickel-Plated |
Contact Surface Material | 50 microinches thick Gold-Plated |
Module Type | Category 6 |
Cable Type | 8-Conductor UTP Copper Cat 5, 5e and 6 |
Connector Feature | Channel/Component Rated |
Position / Conductor | 8P8C |
Product ID | Permanently laser-engraved |
Style Name | eXtreme |
Termination Type | 110 Punchdown |
Wiring Standard | T568A T568B |
Country of Origin | United States |
RoHS Compliant | False |
Category Rating | Cat 6 |
Color | White |
Flammability | Rated V-0 per UL 94 |
Module Style | Connector |
Packaging | Single Pack 1/bag |
Shielding | UTP |
Standards and Certifications | TIA/EIA cULus Listed |
Warranty | 1 Year Limited |
