Features
Specifications

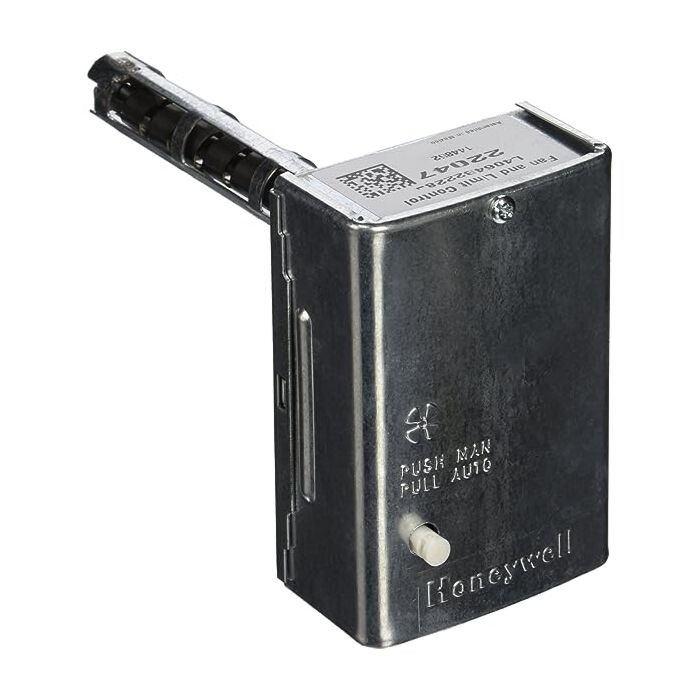

Fan and Limit Controller, Adjustable Temp, Auto Reset, 14 A at 120 VAC/7 A at 240 VAC Fan, 8 A at 120 VAC/4 A at 240 VAC Limit, 0.25 A at 0.25 to 12 VDC/2 A at 24 VAC, 84 A at 120 VAC/42 A at 240 VAC Fan, 48 A at 120 VAC/24 A at 240 VAC Limit, SPDT Switch, -40 to 190 deg F, Surface/Universal Mount
- Push-in receptacles for stripped wire
- Female receptacles for 1/4 in male flag connectors
- Auxiliary screw terminals
- Field adjustable fan and high limit settings
- L4064-B/W and R models have a manual fan switch that overrides the fan control to keep the fan running continuously
- Tradeline® models with mounting adapters for easy installation and strain relief bushings to protect wiring from field abuse
Brand | Honeywell |
---|---|
UPC | 784497966543 |
Store Location (Lititz, PA) | Aisle 04, Section D3 |
Package Length (in) | 1.50" |
Package Width (in) | 3.00" |
Package Height (in) | 4.30" |
Manufacturer Part Number | L4064B2228 |
Type | Adjustable Temp, Auto Reset |
Current Rating | 14 A at 120 VAC/7 A at 240 VAC Fan, 8 A at 120 VAC/4 A at 240 VAC Limit, 0.25 A at 0.25 to 12 VDC/2 A at 24 VAC, 84 A at 120 VAC/42 A at 240 VAC Fan, 48 A at 120 VAC/24 A at 240 VAC Limit |
Switch Type | SPDT |
Temperature Rating | -40 to 190 deg F |
Mounting Type | Surface/Universal |
Application | Forced warm air heating systems |
