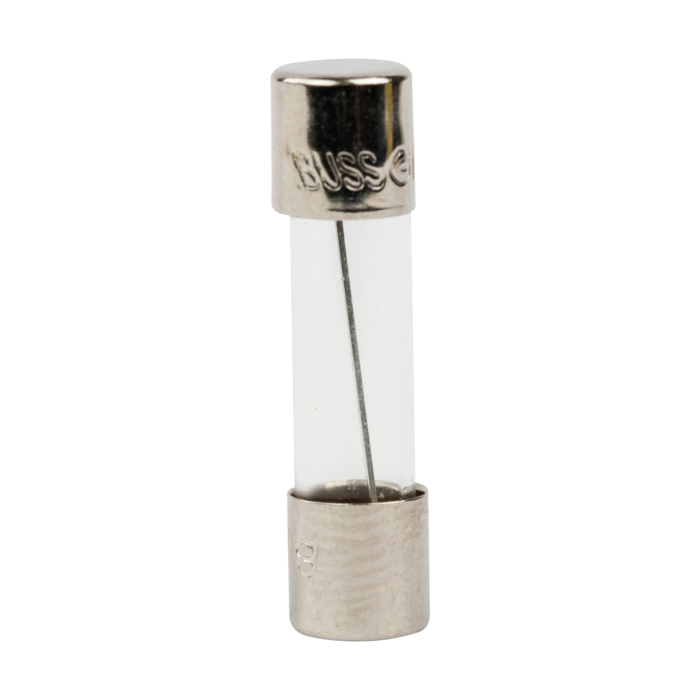

Fast-Acting Fuse
SKU: GMA8
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$11.49
Features
Specifications
Fast-Acting Fuse
- RoHS Compliant
- CE Marked
| Brand | Bussmann |
|---|---|
| UPC | 051712648066 |
| Store Location (Lititz, PA) | Aisle 14, Section N1 |
| Package Length (in) | 2.80" |
| Package Width (in) | 2.40" |
| Package Height (in) | 0.40" |
| Manufacturer Part Number | GMA-8-R |
| Type | Electronic- small dimension |
| Application | Electronic circuits |
| Amperage Rating | 8A |
| Voltage Rating | 125 Vac, 32 Vdc (self certified) |
| Interrupt Rating | 200 kAIC at 125 Vac (p.f.= 1.0) |
| Fuse Indicator | Non Indicating |
| Packaging Type | Standard |
| Response Time | 60 min maximum at 135%, 2 min maximum at 200% |
| Material | Glass tube, nickel-plated brass endcaps |
| Connection | Ferrule end X ferrule end |
| Height | .25 IN |
| Length | .625 IN |
| Width | .25 IN |
| Weight | .002 LB |
