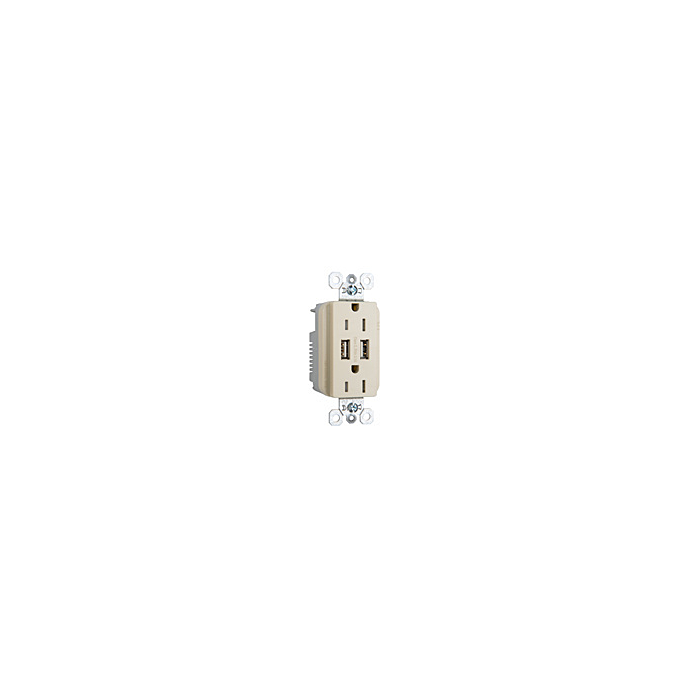

3.1A Spec Grade USB Outlet, Type A, 15A, Tamper-Resistant, Ivory
SKU: TM826USBI
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$32.99
Features
Specifications
3.1A Spec Grade USB Outlet, Type A, 15A, Tamper-Resistant, Ivory
- UL Listed
- cULus Listed
- Federal Spec Listed
- Overall 3.1A USB charging capability: Combination AC duplex receptacles include two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.
- Auto-ground clip assures positive ground.
- AC receptacles are tamper-resistant as standard: patented shutter system prevents improper insertion of foreign objects.
- Multiple color options available.
- Back and side wire terminals accommodate #14 AWG - #10 AWG stranded and solid copper wire.
- Stainless steel auto-ground clips assure positive ground.
- Wire Size: #14 - #10 AWG Copper Conductor Only
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007031775 |
| Store Location (Lititz, PA) | Aisle 09, Section D3 |
| Package Length (in) | 2.13" |
| Package Width (in) | 2.00" |
| Package Height (in) | 2.00" |
| Manufacturer Part Number | TM826USBICC6 |
| Depth | 1.392 in |
| Height | 2.677 in |
| Special Features | Designed for commercial markets with strength and durability in mind, this combination USB charger duplex receptacle features 3.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices. |
| Width | 1.693 in |
| Phase | Single |
| Country of Origin | China |
| Standard | CSA Listed |
| Amperage | 15.0 A |
| Voltage | 125.0 V |
| Number of USBs | 2.0 |
| USB Amperage | 3.1 A |
| USB Wattage | 15.0 W |
| Number of Wires | 3.0 |
| Indoor/Outdoor | Indoor |
| Wire Size | 14 - 10 AWG |
| Wall Plate Included | No |
| Features | Single Piece Plated Steel Mounting Strap |
| Is Tamper-Resistant | Yes |
| Outlet Type | Tamper-Resistant |
| Number of Receptacles | 2.0 |
| Number of Poles | Double Pole |
| Application Sector | Commercial |
| NEMA Configuration Code | 5-15R |
| Environmental Conditions | UL94 V2 |
| Connection Location | Back and Side |
| Wire Connection Type | Screw Terminals |
| Warranty Type | 1-Year Limited Warranty |
| Dielectric Strength | Withstands 2000V minimum |
| Color | Ivory |
| Product Line | Pass & Seymour |
