Federal Pacific

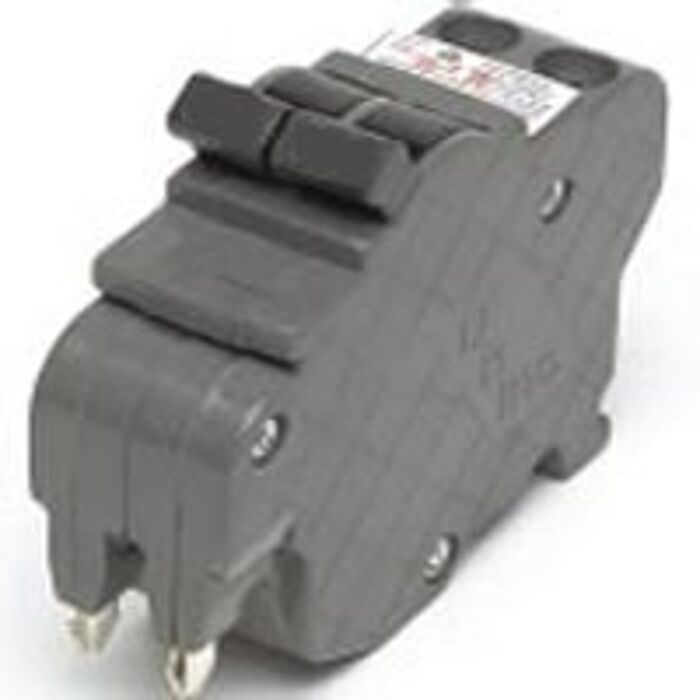

UBIF0220N Circuit Breaker, Type NC, 20 A, 2 -Pole, 120/240 V, Standard Trip, Plug Mounting
SKU: UBIF0220
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$99.99
Features
Specifications
For Federal Pacific Load Centers. HACR rated. 120/240 VAC, 10,000 AIC.
| Brand | Federal Pacific |
|---|---|
| UPC | 094925006032 |
| Store Location (Lititz, PA) | Aisle 08, Section D1 |
| Package Length (in) | 4.80" |
| Package Width (in) | 3.60" |
| Package Height (in) | 1.00" |
| Current Rating | 20 A |
| Dimensions | 3.36 in L x 1 in W x 2.55 H |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 2 |
| Operating Frequency | 50/60 Hz |
| Suitable for | Federal Pacific Electric load centers |
| Terminal Type | Lug |
| Trip Type | Standard |
| Type | Type NC |
| Voltage Rating | 120/240 V |
| Wire Size | 14 to 10 AWG |
