GRACO

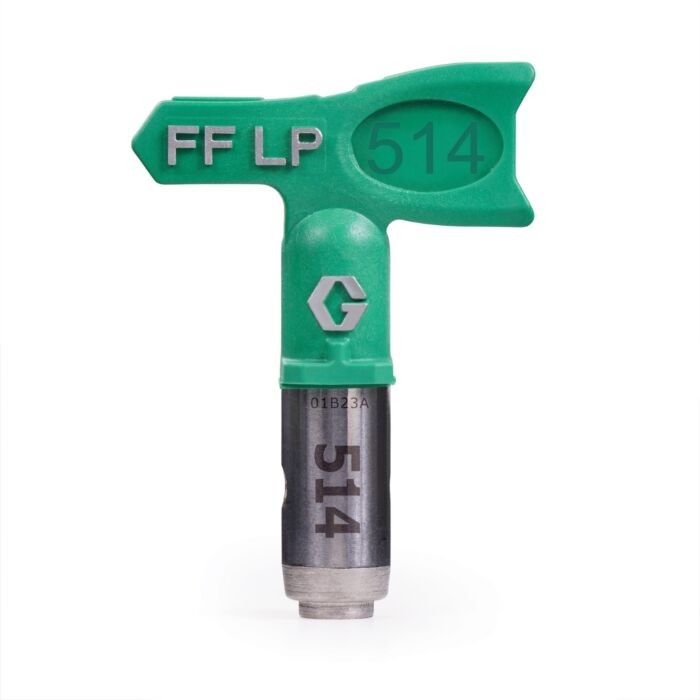

Fine Finish Low Pressure RAC X FF LP SwitchTip, 514

SKU: FFLP514

Need More?

Need more than what's currently in stock? We can help!

Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.

Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store Not stocked
Features chevron-down chevron-up
The Reverse-A-Clean (RAC) 514 Fine Finish Low Pressure (FF LP) RAC X SwitchTip allows you to spray at up to 50% lower pressure. This fine finish tip is ideal for finishing materials, as it produces a 10 to 12-inch fan pattern with a 0.014-inch orifice. To easily clear any clogs, simply reverse the SwitchTip.
  • Reduced prep & cleanup: Less mess with less overspray, allowing you to put the paint where you want it
  • Easy pattern overlap: Softer spray fan ensures a consistent, blended finish on any material or surface
  • Extended tip life: Spraying at half pressure doubles tip life and reduces sprayer maintenance
  • SmartTip technology: Exclusive geometry reduces energy for atomization, delivering a superior finish with less pressure
  • Universal & high quality: Works with any airless sprayer, providing the longest-lasting fan pattern and highest quality, consistent spray
  • Easy tip identification: Large, raised size numbers are always legible, even when covered with paint
  • Superior design: Features a locking tab, snap-in spray/reverse position, and a tool-less OneSeal tip gasket
Specifications chevron-down chevron-up
Brand GRACO
UPC 755652394488
Package Length (in) 2.65"
Package Width (in) 5.30"
Package Height (in) 1.00"
Manufacturer Part Number FFLP514
Tip Size 0.014"
Color Silver/Green
Compatible Material Primer, Stain, Varnish, Water-Based Paint, Enamel, Latex, Solventborne Paints
For Use With RAC X HandTite Tip Guard
Material Tungsten Carbide
Maximum Fan Width 10
Maximum Flow Rate 0.21 GPM
Maximum Working Pressure 4050 psi
Model RAC X
Pattern Size 10" to 12"
