Manitou Manufacturing

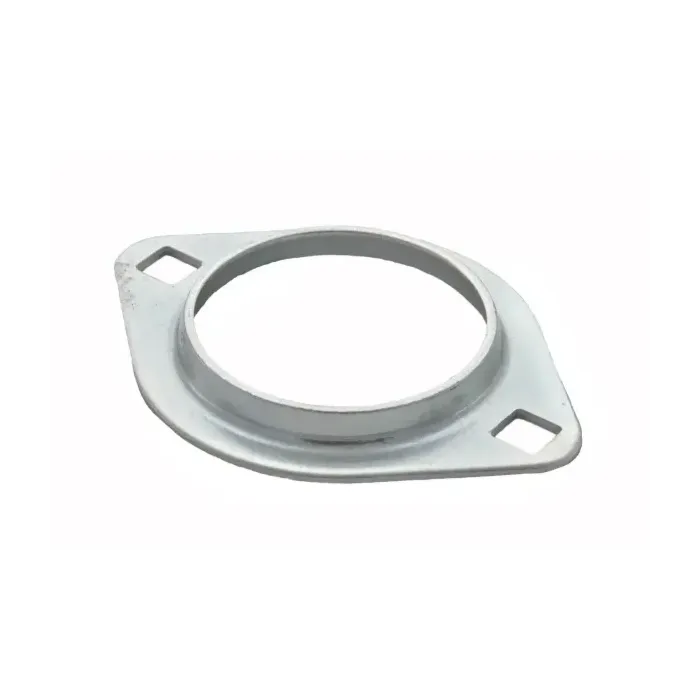

3/4 in 2-5/8 in Steel 2-Hole Flangette
SKU: 47MST
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$2.49
Features
Specifications
Two Bolt Flanges consists of two identical self-aligning flanges for one complete housing unit. Each pair of flanges has a spherical inside surface which mates with the spherical outer surface of the ball bearing ring to provide self-alignment in any direction. A frame opening is required for installation as the unit protrudes thru the frame, plate or panel on which it is installed. The two bolt flanges listed below are standard and are dimensionally the same as supplied by the leading ball bearing manufacturers.
| Brand | Manitou Manufacturing |
|---|---|
| UPC | 865590634741 |
| Store Location (Lititz, PA) | Aisle 09, Section X3 |
| Package Length (in) | 3.00" |
| Package Width (in) | 2.80" |
| Package Height (in) | 0.10" |
| Manufacturer Part Number | 47M-2ZP |
| Type | 2-Hole |
| Bore Diameter | 3/4 in |
| Bolt Center-to-Center Length | 2-13/16 in |
| Bolt Circle Diameter | 11/32 in |
| Overall Length | 2-5/8 in |
| Bearing Material | Steel |
| Finish | Zinc Plated |
| Bearing Outer Diameter | 47 mm |
