Manitou Manufacturing

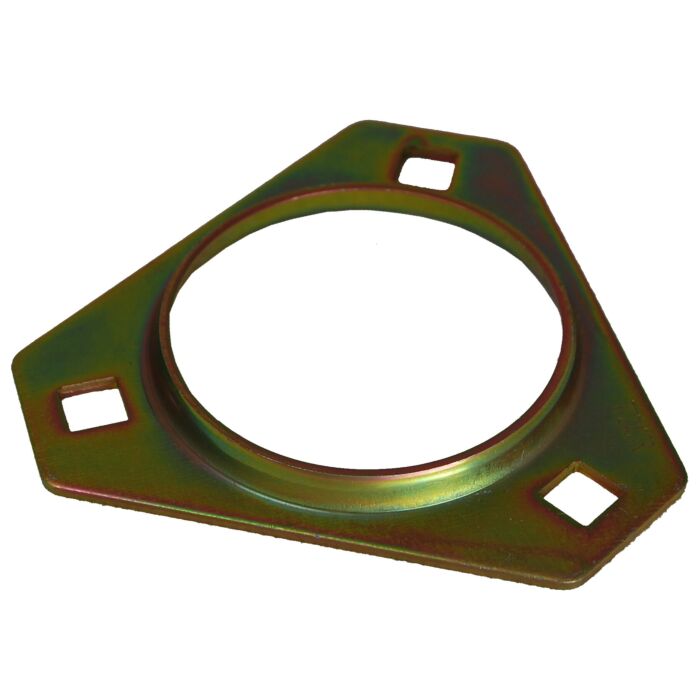

13/16 in 7/8 in 15/16 in 1 in 3-3/4 in Steel 3-Hole Flangette
SKU: 52MS
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$2.29
Features
Specifications
These triangular three bolt flangettes are dimensionally the same as our standard round 40MM-3, 47MM-3, 52MM-3, 62MM-3 and 72MM-3 parts. They are used where space is limited. One housing unit consists of two identical self-aligning flanges. Each pair of flanges accommodates an industry standard metric spherical OD ball bearing. A frame opening is required for installation as the unit protrudes thru the frame, plate or panel on which it is installed.
| Brand | Manitou Manufacturing |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section X3 |
| Package Length (in) | 3.20" |
| Package Width (in) | 2.80" |
| Package Height (in) | 0.20" |
| Type | 3-Hole |
| Bore Diameter | 13/16 in, 7/8 in, 15/16 in, 1 in |
| Bolt Circle Diameter | 1-3/32 in |
| Overall Length | 3-3/4 in |
| Overall Height | 5/16 in |
| Bearing Material | Steel |
| Finish | Zinc Plated |
| Bearing Outer Diameter | 52 mm |
