Manitou Manufacturing

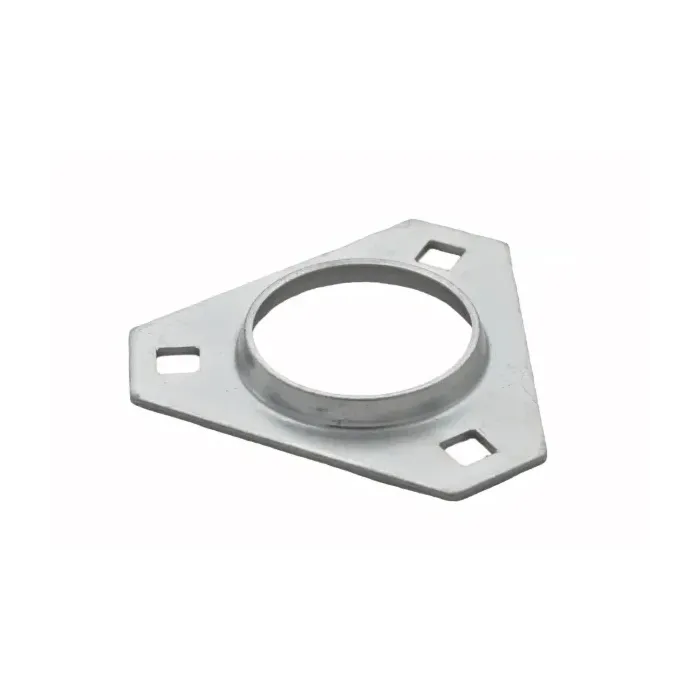

1-1/16 in 1-1/8 in 1-3/16 in 1-1/4 in 4-7/16 in Steel 3-Hole Flangette
SKU: 62MS
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$3.69
Features
Specifications
These triangular three bolt flangettes are dimensionally the same as our standard round 40MM-3, 47MM-3, 52MM-3, 62MM-3 and 72MM-3 parts. They are used where space is limited. One housing unit consists of two identical self-aligning flanges. Each pair of flanges accommodates an industry standard metric spherical OD ball bearing. A frame opening is required for installation as the unit protrudes thru the frame, plate or panel on which it is installed.
| Brand | Manitou Manufacturing |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section X2 |
| Package Length (in) | 3.40" |
| Package Width (in) | 3.40" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | 62MM-3TZP |
| Type | 3-Hole |
| Bore Diameter | 1-1/16 in, 1-1/8 in, 1-3/16 in, 1-1/4 in |
| Bolt Circle Diameter | 1 in |
| Overall Length | 4-7/16 in |
| Overall Height | 11/32 in |
| Bearing Material | Steel |
| Finish | Zinc Plated |
| Bearing Outer Diameter | 62 mm |
