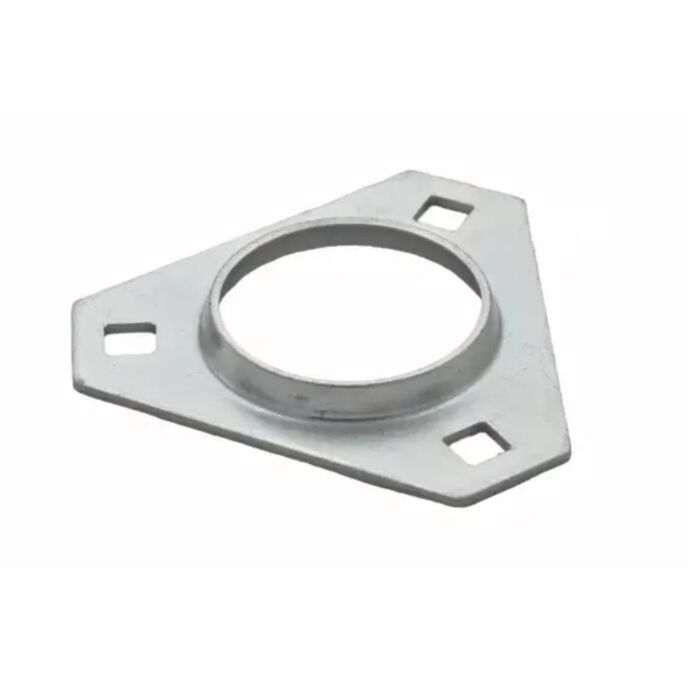

The spherical inside surface of each pair of flanges mates with the spherical outer surfaces of the ball bearing to provide self-alignment in any direction. The three-bolt flanges listed are standard and are dimensionally the same as supplied by the leading ball bearing manufacturers. Two flanges are required to house a standard ball bearing unit.
| Brand | Manitou Manufacturing |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section X3 |
| Package Length (in) | 3.20" |
| Package Width (in) | 3.00" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | 40MM-3TZP |
| Type | 3-Hole |
| Bore Diameter | 1/2 in, 9/16 in, 5/8 in |
| Bolt Circle Diameter | 1/4 in |
| Overall Length | 3-3/16 in |
| Overall Height | 9/32 in |
| Bearing Material | Steel |
| Finish | Zinc Plated |
| Bearing Outer Diameter | 40 mm |
