Manitou Manufacturing

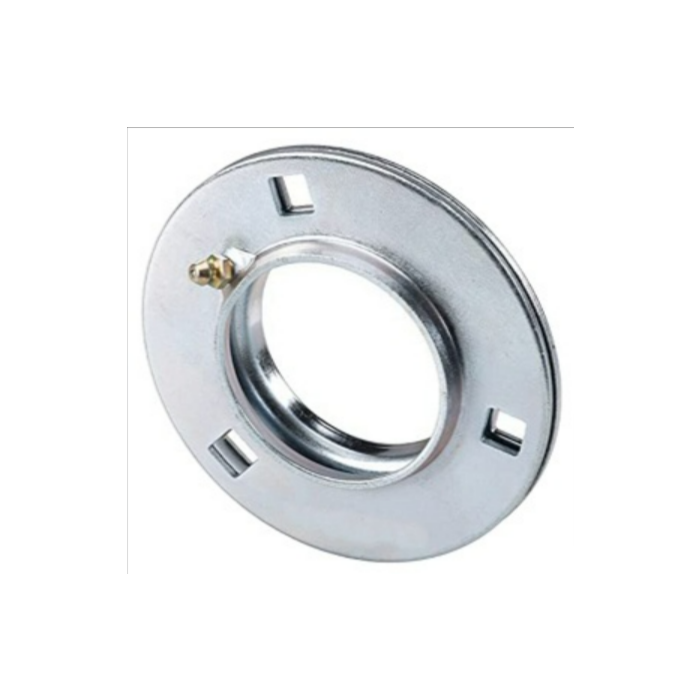

3/4 in 3-9/16 in Steel 3-Hole Flangette
SKU: 47MM3GZP
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$6.29
Features
Specifications
These relube flanges are used where additional lubrication is required. For example, where dust, dirt, excessive moisture or other contaminants are present. The additional lubrication increases the life of the ball bearing unit by flushing out any contaminants that may be present, plus lubricating the ball bearing unit over a longer period of time. The flange with the grease fitting has an inner grease groove, which allows the grease to enter the holes in the outer ring of the ball bearing. The other mating flange has a similar grease groove, so the ball bearing can be reversed and still be lubricated.
| Brand | Manitou Manufacturing |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section X2 |
| Package Length (in) | 3.20" |
| Package Width (in) | 3.20" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | 47MM-3GZP |
| Type | 3-Hole |
| Bore Diameter | 3/4 in |
| Bolt Circle Diameter | 5/16 in |
| Overall Length | 3-9/16 in |
| Overall Height | 11/32 in |
| Bearing Material | Steel |
| Finish | Zinc Plated |
| Bearing Outer Diameter | 47 mm |
