Manitou Manufacturing

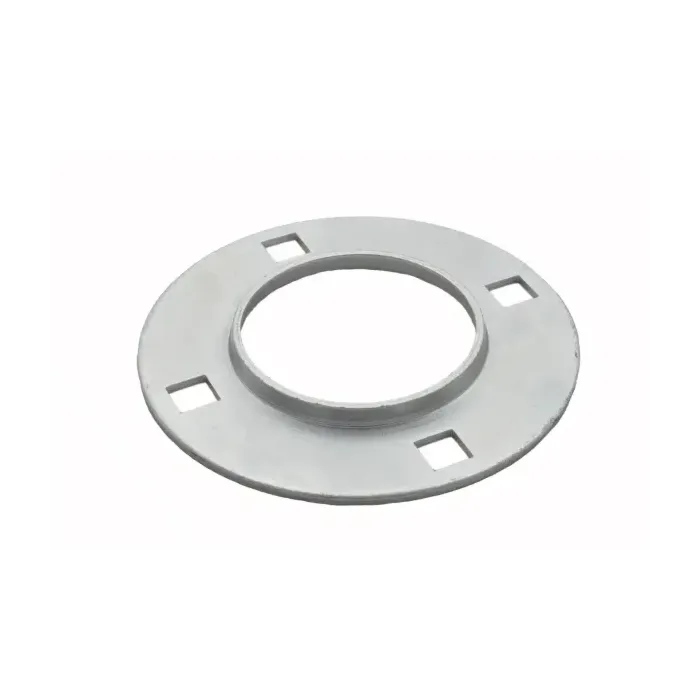

1-1/4 in 1-5/16 in 1-3/8 in 1-7/16 in 4-13/16 in Steel 4-Hole Flangette
SKU: 72MS4
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$6.29
Features
Specifications
The spherical inside surface of each pair of flanges mates with the spherical outer surfaces of the ball bearing to provide self-alignment in any direction. The flanges listed are standard and are dimensionally the same as supplied by the leading ball bearing manufacturers. Two flanges are required to house a standard ball bearing unit.
| Brand | Manitou Manufacturing |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section X2 |
| Package Length (in) | 4.60" |
| Package Width (in) | 3.80" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | 72MM-4ZP |
| Type | 4-Hole |
| Bore Diameter | 1-1/4 in, 1-5/16 in, 1-3/8 in, 1-7/16 in |
| Bolt Circle Diameter | 3/8 in |
| Overall Length | 4-13/16 in |
| Overall Height | 3/8 in |
| Bearing Material | Steel |
| Finish | Zinc Plated |
| Bearing Outer Diameter | 72 mm |
