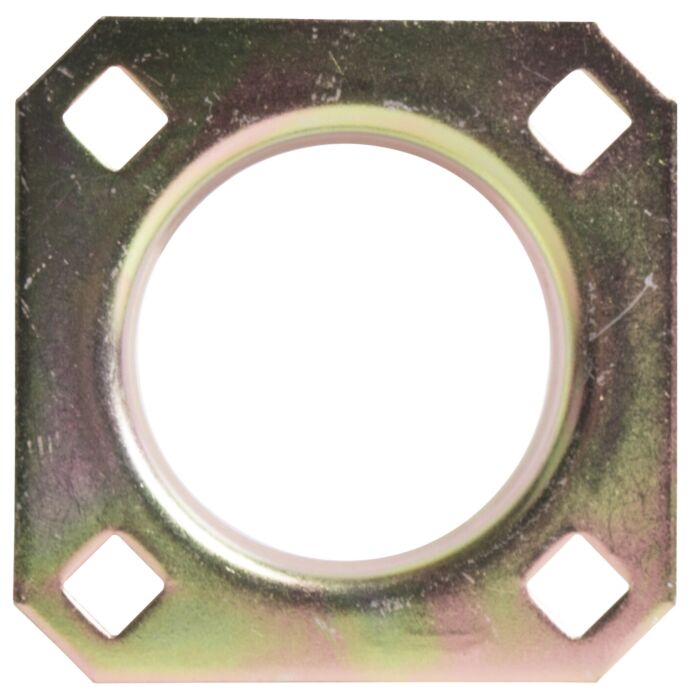

The spherical inside surface of each pair of flanges mates with the spherical outer surfaces of the ball bearing to provide self-alignment in any direction. The flanges listed are standard and are dimensionally the same as supplied by the leading ball bearing manufacturers. Two flanges are required to house a standard ball bearing unit.
| Brand | Manitou Manufacturing |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section X2 |
| Package Length (in) | 4.60" |
| Package Width (in) | 4.00" |
| Package Height (in) | 0.40" |
| Manufacturer Part Number | 80MM-4SQZP |
| Type | 4-Hole |
| Bore Diameter | 1-1/2 in, 1-9/16 in |
| Bolt Circle Diameter | 1/2 in |
| Overall Length | 4-3/4 in Square |
| Overall Height | 9/16 in |
| Bearing Material | Steel |
| Finish | Zinc Plated |
| Bearing Outer Diameter | 80 mm |
