Prince Manufacturing Corporation

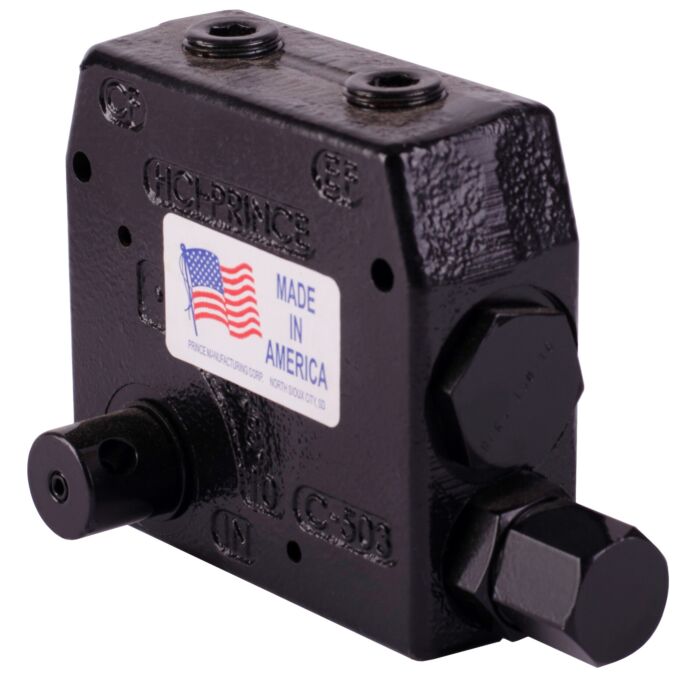

1/2 in NPTF Flow Control Valve
SKU: RDRS15016
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$179.99
Features
Specifications
The PRINCE valve is a pressure compensated adjustable flow control valve. By rotating the handle, the flow out the "CF" or controlled flow port, can be varied from approximately 0 to the maximum controlled flow shown in the chart below. Any remaining flow is bypassed to the "EF" or excess flow port. This flow can be used to power another circuit or can be returned to tank. Once the controlled flow is set it will remain nearly constant with variations in pressure on either the controlled or excess flow ports.
- Filtration - for general purpose valves, fluid
- With built-in relief
| Brand | Prince Manufacturing Corporation |
|---|---|
| Store Location (Lititz, PA) | Aisle 06 End Cap |
| Package Length (in) | 4.60" |
| Package Width (in) | 3.00" |
| Package Height (in) | 7.60" |
| Nominal Size | 1/2 in |
| Port Type | NPTF |
| Pressure Rating | 3000 psi |
| Flow Rate | 0 to 16 gpm |
| Temperature Rating | 180 deg F |
