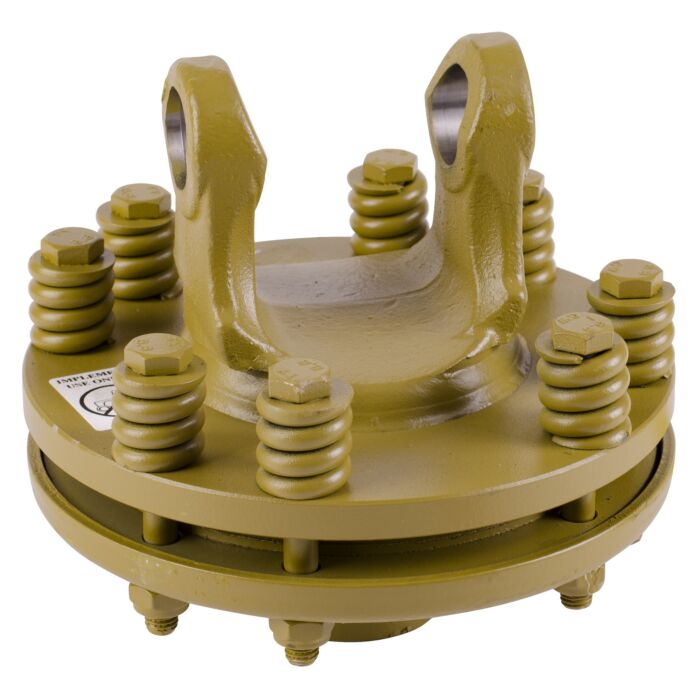

AB6,AW22 series friction clutch yoke with 1 3/8-6 spline bore and clamp connection
SKU: 5608606
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$262.66
Features
Specifications
The Friction clutch is indispensable in certain agricultural implement applications. The friction clutch is the only torque limiter that has the ability to continuously transmit power (at a reduced level) while overloaded. This is valuable during startup of high inertia machines, as well as for leveling out torsional fluctuations due to high cyclic loads. The standard friction clutch with coil springs can be set in the field to the desired overload protection and must be readjusted after slipping.
| Brand | Weasler |
|---|---|
| UPC | 728357308623 |
| Store Location (Lititz, PA) | Aisle 08, Section W3 |
| Package Length (in) | 8.00" |
| Package Width (in) | 8.00" |
| Package Height (in) | 7.75" |
| Manufacturer Part Number | 560-8606 |
| Length | 6.327 inch |
| Height | 7.087 inch |
| Width | 7.087 inch |
| Weight | 20.16 lb |
| Series | AB6,AW22 |
| Outside Diameter | 7.087" |
| Bore | 1.375" |
| Bore Description | 1 3/8-6 SPLINE |
| Connection 1 Description | CLAMP |
| Torque | 11100 in-lb |
| Bearing Diameter | 1.189" |
| Bearing Span | 3.618" |
| Horsepower at 540 RPM | 79 hp |
| Horsepower at 1000 RPM | 122 hp |
