Features
Specifications

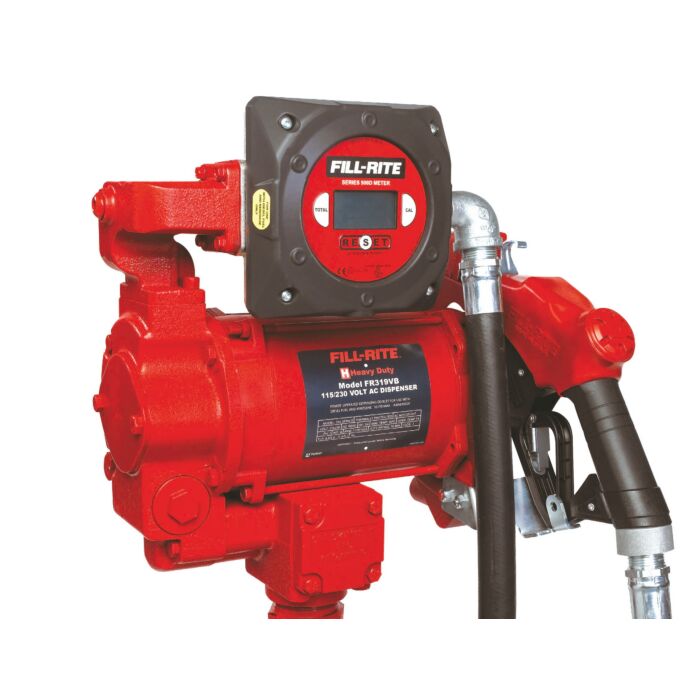

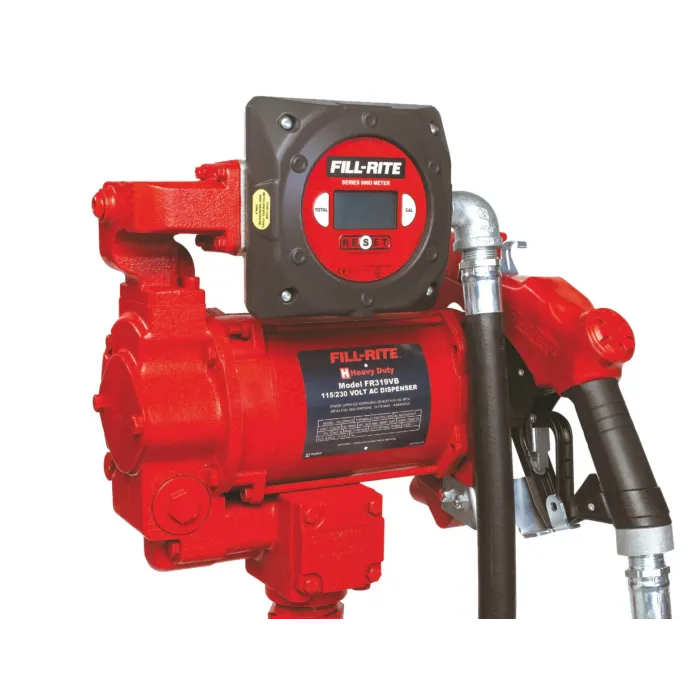

Fill-Rite's 300 Series of heavy-duty fuel transfer pumps features 115V/230VAC dual voltage power input and are built to last with cast-iron construction.
- Leading performance - our highest volume ac pump that transfers fuel at 35 gpm, ideal for filling heavy equipment from aboveground storage tanks
- Cast-Iron Construction - durable cast-iron construction provides heavy-duty performance and withstands daily use in high-volume, stationary applications
- Long Life - thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
- Flexible Power Input - dual voltage design allows you to select either 115V or 230VAC power with the simple turn of a switch
- Limited Lifetime Warranty -we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business
Brand | Fill-Rite |
---|---|
UPC | 089404216576 |
Store Location (Lititz, PA) | Aisle 12, Section T3 |
Package Length (in) | 20.20" |
Package Width (in) | 9.60" |
Package Height (in) | 21.60" |
Manufacturer Part Number | FR319VB |
Type | Heavy Duty |
Voltage Rating | 115/230 VAC |
Flow Rate | 35 gpm |
Inlet Size | 1.25 in |
Outlet Size | 1 in |
Pressure Rating | 26 psi |
Suction Tube Length | 18 ft |
Housing Material | Cast Iron |
Duty Cycle | 30 min On/Off |
Overall Length | 14.8 in |
Overall Height | 20.1 in |
Overall Width | 16.9 in |
Mesh Size | 40 x 40 x 0.008 micron |
Thread Size | 2 in NPT |
Includes | 900CD Digital Meter, 1 in x 18 ft UL Listed Hose with Static Ground Wire, 1 in Ultra Hi-Flow Automatic Diesel Nozzle (Red), 14 ga Cable, 2 Batteries |
