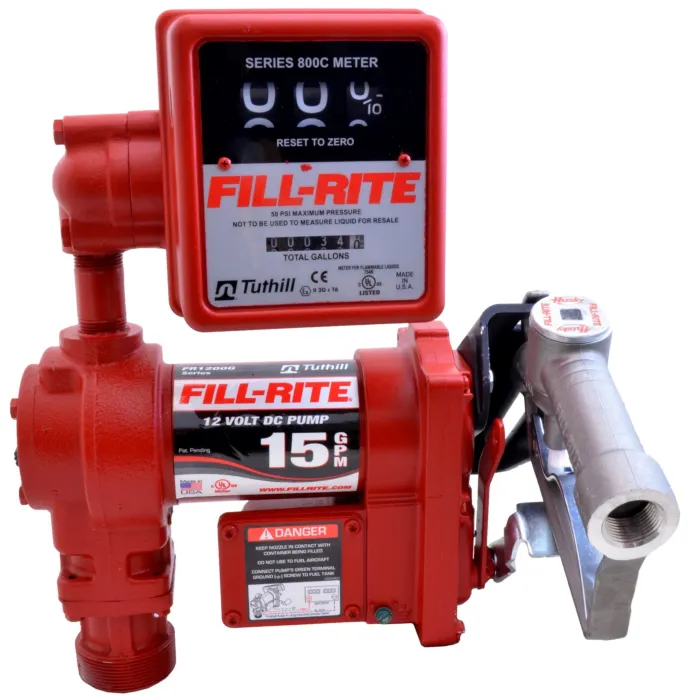

Fill-Rite Model FR1211H is a 12 V 15 gpm fuel transfer pump that comes with a 3/4 in x 12 ft. discharge hose, 3/4 in manual nozzle, 807C mechanical 3-digit fuel transfer meter (gallons), 1 in x 34 in telescoping steel suction pipe, 3/4 in elbow, 5 ft. 12-Gauge ground wire and a 18 ft. 12-Gauge 2-wire battery cable. It can be used to pump gasoline, diesel, kerosene, ethanol blends up to 15%, methanol blends up to 15% and bio-diesel up to B20.It is important to note that the previous FR1211G model has been updated to the FR1211H model. With a removable junction box, the product is now easier to install. The performance specifications of the product did not change.
Brand | Fill-Rite |
---|---|
UPC | 089404223109 |
Store Location (Lititz, PA) | Aisle 12, Section T2 |
Package Length (in) | 20.20" |
Package Width (in) | 9.60" |
Package Height (in) | 21.60" |
Manufacturer Part Number | FR1211H |
Type | Heavy Duty |
Voltage Rating | 12 V |
Flow Rate | 15 gpm |
Inlet Size | 1 in |
Outlet Size | 3/4 in |
Pressure Rating | 16 psi |
Suction Tube Length | 8 ft |
Housing Material | Cast Iron |
Duty Cycle | 30 min On/Off |
Overall Length | 7 in |
Overall Height | 15 in |
Overall Width | 13 in |
Viscosity | 1-4 cST |
Mesh Size | 20 x 20 micron |
Thread Size | 2 in NPT |
Includes | 3/4 in x 12 ft Hose with Static Wire, 3/4 in Manual Nozzle and 807C Mechanical Meter (gal) |
