Fill-Rite's RD8 Series balances rapid performance and lightweight portability, making it the most versatile fuel transfer pump for low volume commercial or recreational applications.
- Powder-coated exterior - thick powder-coated exterior provides elite protection from corrosion and tough environmental conditions
- Cast-aluminum construction - built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance
- Completely configurable - adjustable design allows you to position inlet and outlet flanges for your specific application, making the rd perfect for tight spaces
- Versatile mounting - versatile design allows you to mount pump directly to a tank, set it on the ground or even hold it during filling
- Quick-connect power - detachable power cord makes operation, transportation and storage more convenient, while also providing additional security measure
- Compact size - weighing under 8 pounds, can be easily transported or held during operation
Brand | Fill-Rite |
---|---|
UPC | 089404224700 |
Store Location (Lititz, PA) | Aisle 12, Section T2 |
Package Length (in) | 18.00" |
Package Width (in) | 7.20" |
Package Height (in) | 17.80" |
Manufacturer Part Number | RD812NH |
HP Rating | 0.17 hp |
Voltage Rating | 12 VDC |
Flow Rate | 8 gpm |
Inlet Size | 0.75 in |
Outlet Size | 0.75 in |
Pressure Rating | 16 psi |
Suction Tube Length | 6 ft |
Housing Material | Cast Aluminum |
Duty Cycle | 30 min On/Off |
Mesh Size | 20 x 20 micron |

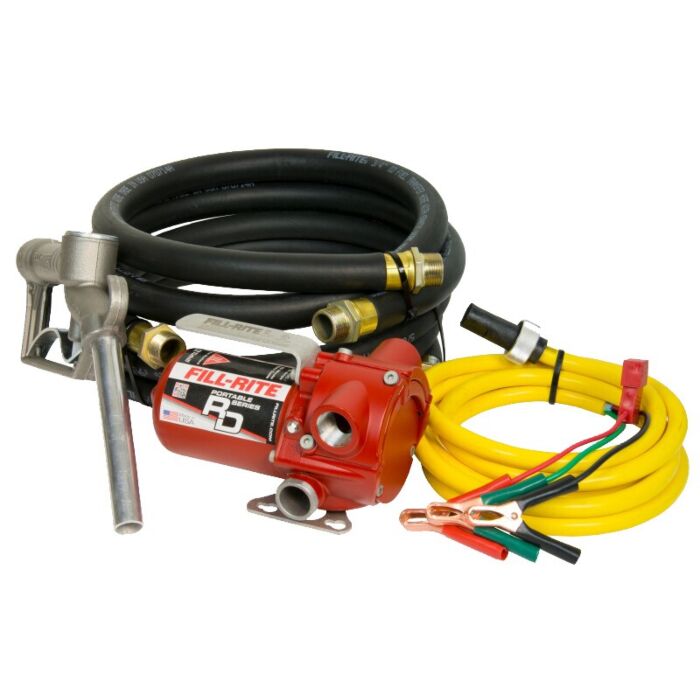

Includes | 3/4 in x 6 ft UL Listed Suction Hose, 3/4 in” Cast Aluminum Manual Nozzle, Battery Clips, 5/8 in x 8 ft UL Listed Hose with Static Ground Wire |
