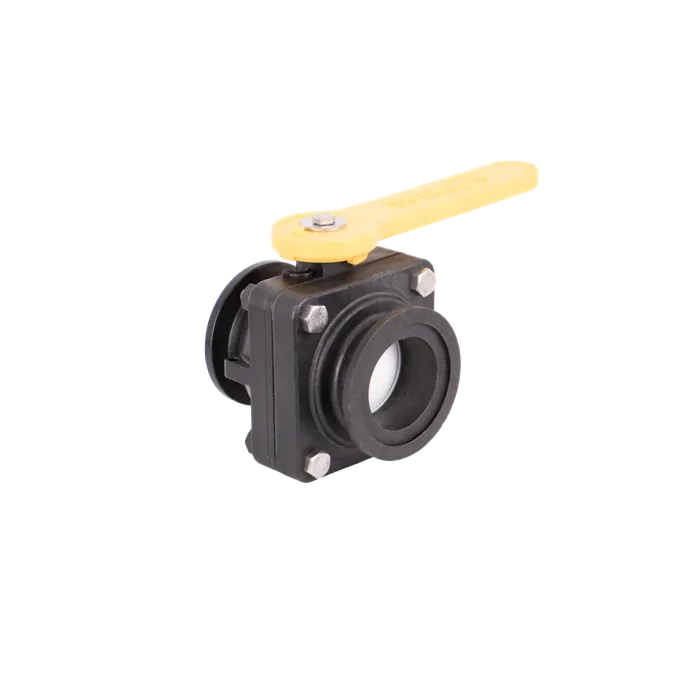

Full Port Manifold Stub Valve - 2 in.
SKU: MVS220CF
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$74.99
Features
Specifications
Downloads
2" Full Port Manifold Valve Flange X Flange With FKM Seals
Standard Lead Times
- Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats.
- FKM seals.
- Precision molded in polypropylene. Polypropylene is reinforced with fiberglass for additional strength.
- PTFE self-lubricating stem bush:ings and seats cannot stick or bind.
- Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.
- Stainless steel bolts.
- Maximum operating pressure 150 psi
| Brand | Banjo |
|---|---|
| Date Added | Apr 6, 2026 |
| Package Length (in) | 7.50" |
| Package Width (in) | 5.40" |
| Package Height (in) | 4.20" |
| Manufacturer Part Number | MVS220CF |
| Family | Manifold Flange Connections |
| Type | Valves |
| Style | Stubby |
| Size | 2" |
| Weight | 3.555 lb |
