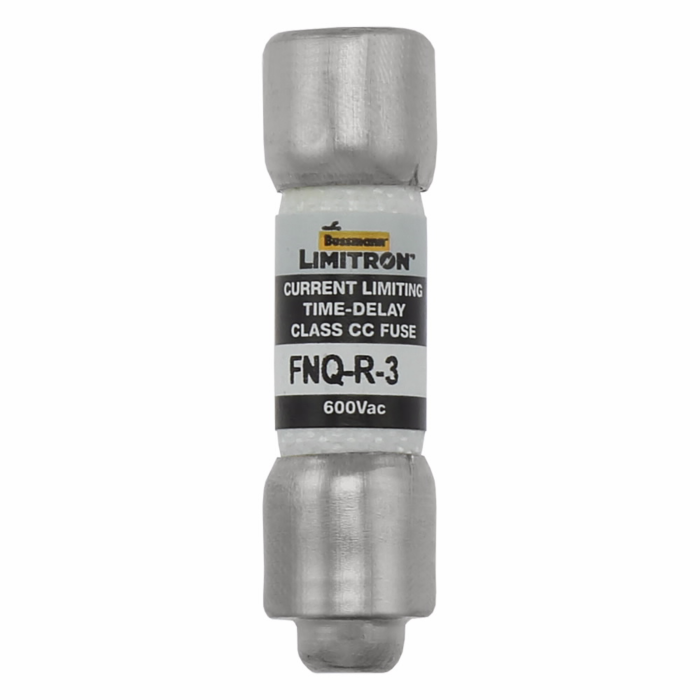

Eaton Bussmann series FNQ-R fuse, 3 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
Brand | Bussmann |
---|---|
UPC | 051712147088 |
Store Location (Lititz, PA) | Aisle 08, Section D3 |
Package Length (in) | 0.41" |
Package Width (in) | 0.41" |
Package Height (in) | 1.50" |
Manufacturer Part Number | FNQ-R-3 |
UPC | 051712147088 |
Product Length/Depth | 1.5 in |
Product Height | .41 in |
Product Width | .41 in |
Product Weight | .15 lb |
Warranty | Not Applicable |
Compliances | CE Marked |
Fuse indicator | Non-indicating |
Special features | Rejection style |
Interrupt rating | 200 kAIC |
Type | Current-limiting high inrush time-delay fuse |
Connection | Ferrule end x ferrule end |
Response time | 12 sec at 200% |
Class | Class CC |
Material | Melamine tube |
Voltage rating | 600 V |
Application | Line protection, small control transformers, industrial control, branch circuits |
Amperage Rating | 3 A |
Packaging type | Standard |
