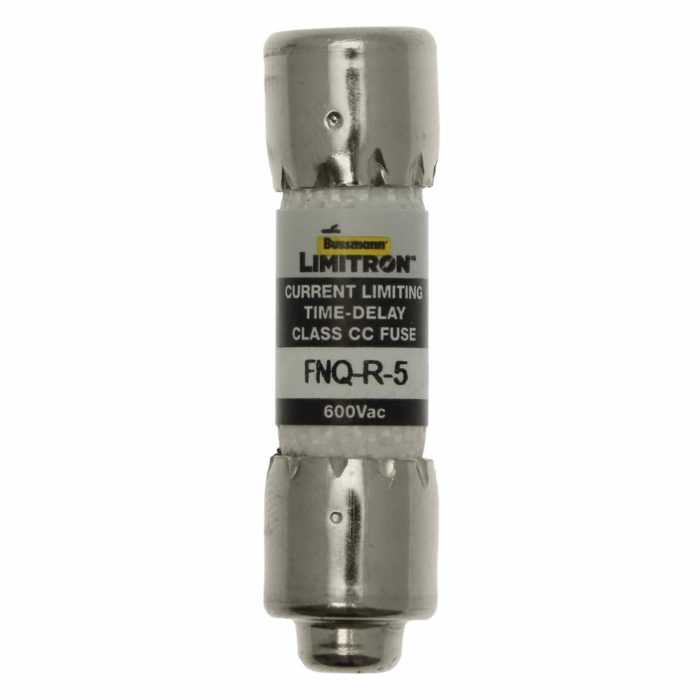

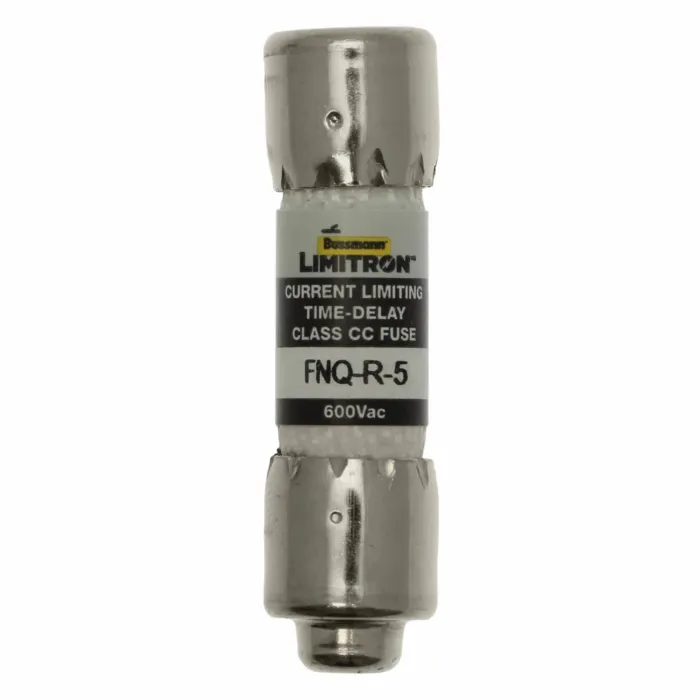

Eaton Bussmann series FNQ-R fuse, 5 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
SKU: FNQR5 | Location: Aisle 08, Section D3
$34.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
9 In stock
Features
Specifications
Downloads
Eaton Bussmann series FNQ-R fuse, 5 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
| Brand | Bussmann |
|---|---|
| UPC | 051712147101 |
| Store Location (Lititz, PA) | Aisle 08, Section D3 |
| Package Length (in) | 0.41" |
| Package Width (in) | 0.41" |
| Package Height (in) | 1.50" |
| Manufacturer Part Number | FNQ-R-5 |
| Fuse indicator | Non-indicating |
| Special features | Rejection style |
| Interrupt rating | 200 kAIC |
| Type | Current-limiting high inrush time-delay fuse |
| Connection | Ferrule end x ferrule end |
| Response time | 12 sec at 200% |
| Class | Class CC |
| Material | Melamine tube |
| Voltage rating | 600 V |
| Application | Line protection, small control transformers, industrial control, branch circuits |
| Amperage Rating | 5 A |
| Packaging type | Standard |
| UPC | 051712147101 |
| EAN | 5027590060370 |
| Product Length/Depth | .41 in |
| Product Height | 1.5 in |
| Product Width | .41 in |
| Product Weight | .15 lb |
| Warranty | Not Applicable |
| Compliances | CE Marked |
