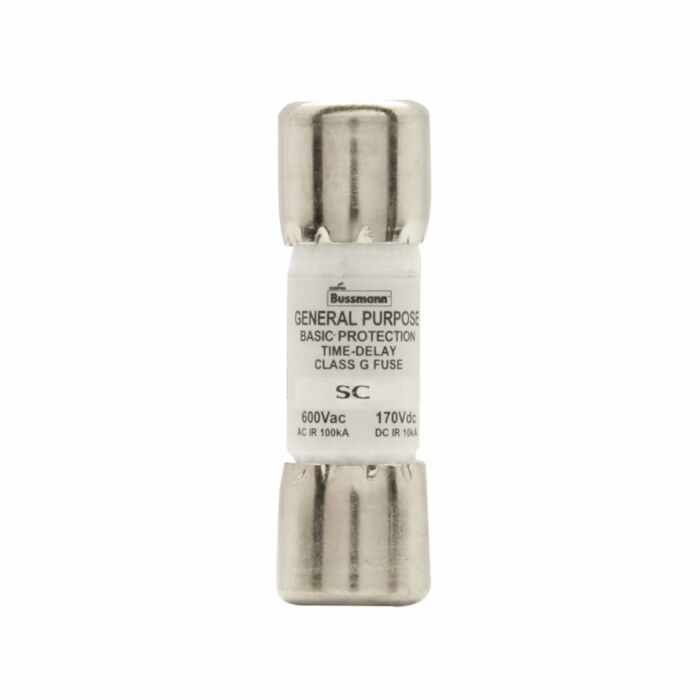

Basic protection Class G size-rejecting, current limiting fuses. 1/2 to 6A Fast-acting, 7 to 60A time-delay. Time-delay - 12 seconds (minimum) at 200% of rated current.
- Meets basic protection requirements of NEC®, Canadian Electrical Code (CEC), UL and CSA
- Most economical overcurrent protection solution compared to circuit breakers
- For use in various non-demanding, general purpose applications
- Compact branch-circuit units with high interrupting rating and current-limitation
- With up to a 600V rating, they can be used in 120/208V, 120/240V and 277/480V circuits
- Fuses 7 amps and above have a degree of overload time-delay that permits them to pass temporary overloads
Brand | Bussmann |
---|---|
UPC | 051712250085 |
Store Location (Lititz, PA) | Aisle 08, Section D3 |
Package Length (in) | 0.41" |
Package Width (in) | 0.41" |
Package Height (in) | 1.31" |
Manufacturer Part Number | SC-8 |
Series | SC |
Indicating/Non-Indicating | Non-Indicating |
Voltage Rating | 170 VDC |
Current Rating | 8 A |
