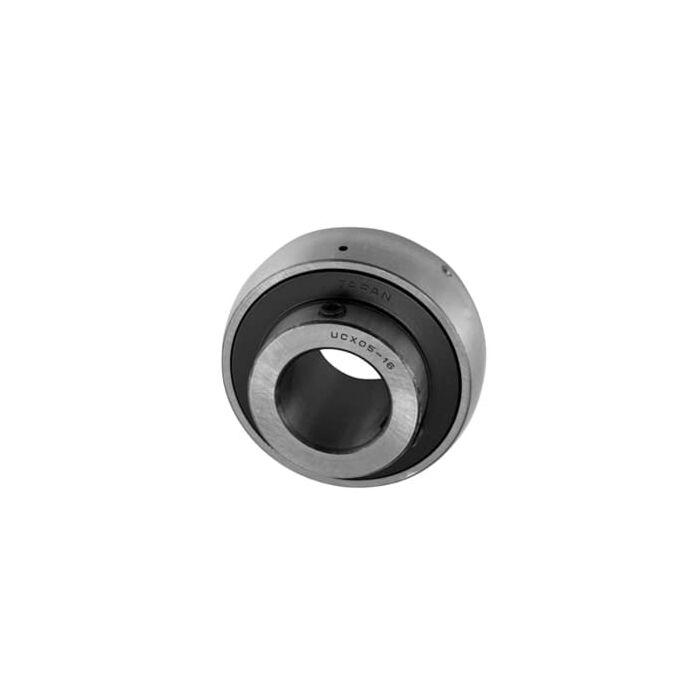

1-1/2 in 3.3465 in 0.866 in Insert Bearing
SKU: UCX0824FYH
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$37.99
Features
Specifications
Insert Bearing, 1-1/2 in Bore Dia, 3.3465 in Outside Dia, 0.866 in Width, 7420 lbf Dynamic, 4610 lbf Static, Steel Bearing, Set Screw, Cylindrical Bore
| Brand | FYH |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section X2 |
| Package Length (in) | 2.80" |
| Package Width (in) | 2.00" |
| Package Height (in) | 3.40" |
| Manufacturer Part Number | UCX0824G5 |
| Bore Diameter | 1-1/2 in |
| Outside Diameter | 3.3465 in |
| Width | 0.866 in |
| Load Capacity | 7420 lbf Dynamic, 4610 lbf Static |
| Bearing Material | Steel |
| Locking Device | Set Screw |
| Bore Type | Cylindrical |
