General Pump Company

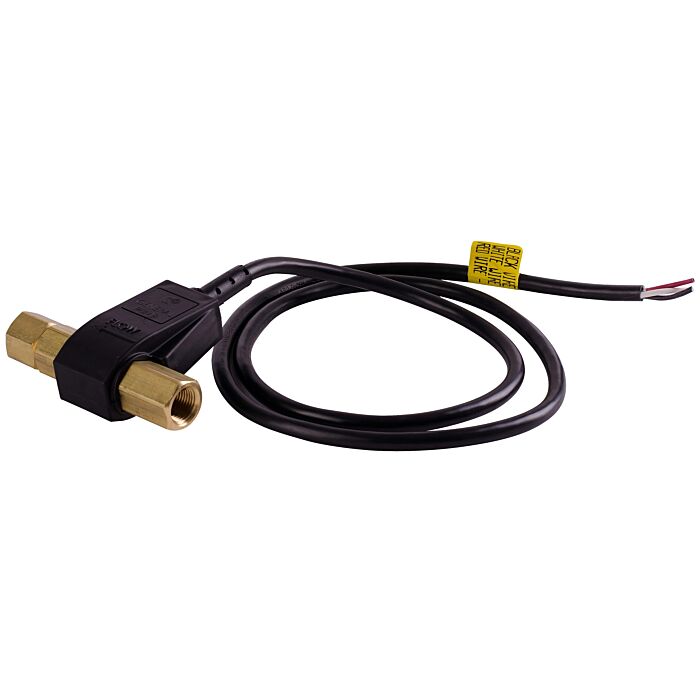

250 VAC 5 A 3/8 in In-Line Tri-Magnet Technology Flow Switch
SKU: 100975
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$99.99
Features
Specifications
Flow Switch, In-Line, Tri-Magnet Technology, 250 VAC, 5 A Contact, 3/8 in, FNPT, 1.25 to 12 gpm, 5000 psi, 180 deg F, 18 AWG Lead Wire, 48 in Wire Length, 30 Ohm
- No reed
- Micro switch tech eliminates reed switch
- Activates with 1.25 gpm flow at 50 psi
- Can be mounted in any position
| Brand | General Pump Company |
|---|---|
| UPC | 682491035244 |
| Store Location (Lititz, PA) | Aisle 11, Section S4 |
| Package Length (in) | 6.20" |
| Package Width (in) | 3.60" |
| Package Height (in) | 4.20" |
| Manufacturer Part Number | 5393 |
| Type | In-Line, Tri-Magnet Technology |
| Voltage Rating | 250 VAC |
| Contact Rating | 5 A |
| Nominal Pipe Size | 3/8 in |
| Connection Type | FNPT |
| Flow Rate | 1.25 to 12 gpm |
| Pressure Rating | 5000 psi |
| Temperature Rating | 180 deg F |
| Wire Gauge | 18 AWG Lead |
| Wire Length | 48 in |
| Resistance | 30 Ohm |
