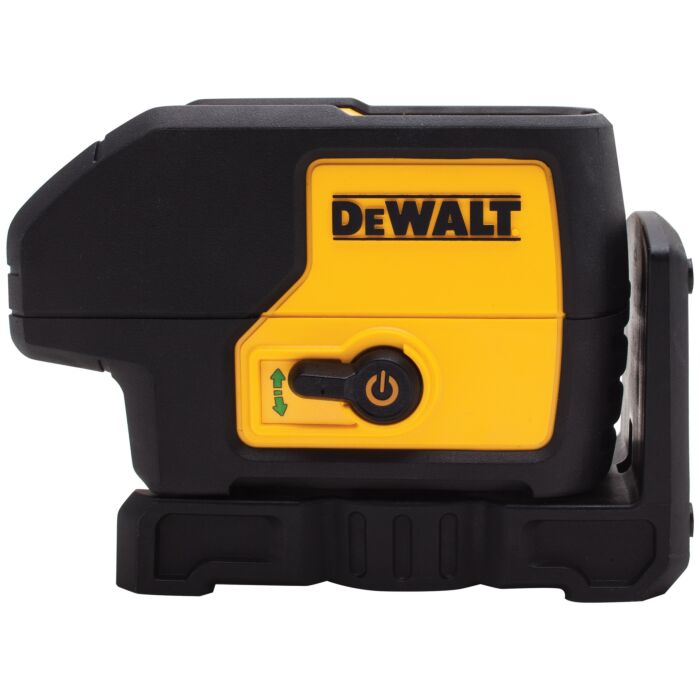

The DW083CG 3 Beam Green Laser offers the same great features of our DW083K in a high-visibility green beam. It includes a single lever power switch that locks the pendulum in the off position for added durability and the built-in magnetic pivoting bracket mounts easily on metal surfaces.
- +/- 1/8" Accuracy at 30ft
- 1m drop rating
- IP54 rating
- Locking pendulum
- Integrated magnetic bracket for easier set-up
- Green beam for visbility
- Laser Class 2, <=1.5mW @ 510-530nm
- No
| Brand | DEWALT |
|---|---|
| UPC | 885911492799 |
| Store Location (Lititz, PA) | Aisle 25, Section I4 |
| Package Length (in) | 4.25" |
| Package Width (in) | 8.63" |
| Package Height (in) | 8.63" |
| Manufacturer Part Number | DW083CG |
| Country of Origin | China |
| Length | 8.9 in |
| Width | 8.6 in |
| Height | 4.3 in |
| Weight | 2.85 lbs |
| Battery Qty | 2 |
| Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
| Battery Required | Yes |
| Number Of Batteries Required | 2 |
| Prop 65 Generic Warning | No |
| Warranty | 3LW1YS90D |
| Claims Needed | No |
| Accuracy | ±1/8 in. |
| Case Type | N/A (no case) |
| Maximum Distance | 65 Ft |
| Mounting Method | Wall or Tripod |
| Project Beam 360 Degrees | No |
| Self Leveling | Yes |
| Tripod Included | No |
| Product Finish | Black/Yellow |
| Product Primary Material | Plastic |
