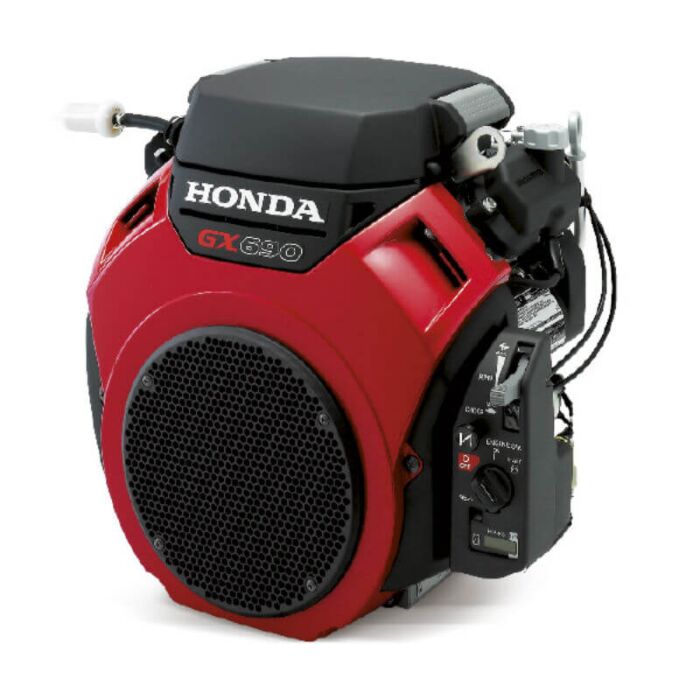

22.1 hp 48.3 nm 3600 rpm General Purpose Engine
SKU: GX690RHBAF
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$2,124.99
Features
Specifications
The power rating of this engine is the net power tested on a production engine for this engine model and measured in accordance with SAE J1349 at a specified rpm.
- The OHV design enhances combustion efficiency
- Variable ignition timing (digital CDI) results in high power output, reduced fuel consumption and excellent exhaust emission performance
- The high-efficiency cooling fan generates higher airflow with reduced noise levels
- High quality materials and purpose-built components ensure reliable, long-term use
- Meets world's most stringent environmental legislation
- Low fuel and oil consumption
- 2 years Warranty
| Brand | Honda |
|---|---|
| Store Location (Lititz, PA) | Aisle 07, Section N3 |
| Package Length (in) | 15.90" |
| Package Width (in) | 16.10" |
| Package Height (in) | 17.20" |
| Horsepower | 22.1 hp |
| Torque Rating | 48.3 nm |
| Speed | 3600 rpm |
| Displacement | 688 cc |
| Starter Type | Electric |
| Fuel Type | Petrol |
| Ignition Type | Digital CDI with Variable Ignition Timing |
| Oil Tank Capacity | 1.9 L |
| Shaft Type | Horizontal |
| Overall Width | 410 mm |
| Overall Depth | 429 mm |
| Overall Height | 438 mm |
| Color | Red |
