Amec

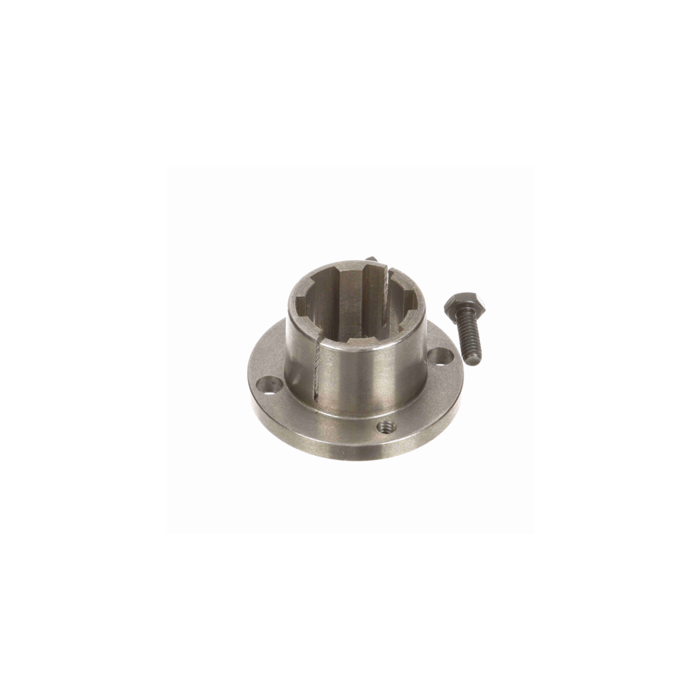

1-3/8 in 1-1/4 in Sintered Steel/Ductile Iron 6-Spline Split Taper Bushing
SKU: H226 | Location: Aisle 10, Section S5
$29.49
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
3 In stock
Features
Specifications
Bushings are used to connect a product to a shaft that has smaller diameter than the product has.
- Lifetime Warranty - If this bushing ever fails Browning will replace it Free of charge
- Solid Flange & Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
| Brand | Amec |
|---|---|
| UPC | 662289233762 |
| Store Location (Lititz, PA) | Aisle 10, Section S5 |
| Package Length (in) | 2.75" |
| Package Width (in) | 2.63" |
| Package Height (in) | 1.50" |
| Manufacturer Part Number | H1 3/8 6SPL B |
| Type | 6-Spline |
| Bore Diameter | 1-3/8 in |
| Barrel Diameter | 1.57 in Small End/1.625 in Large End |
| Overall Length | 1-1/4 in |
| Material | Sintered Steel/Ductile Iron |
| Number of Bolt Holes | 2 |
| Flange Diameter | 2-1/2 in |
| Flange Thickness | 1/4 in |
| Screw Size | 1/4 x 3/4 in |
| Torque Rating | 95 in-lb |
| Application | Fans, blowers, conveyors |
