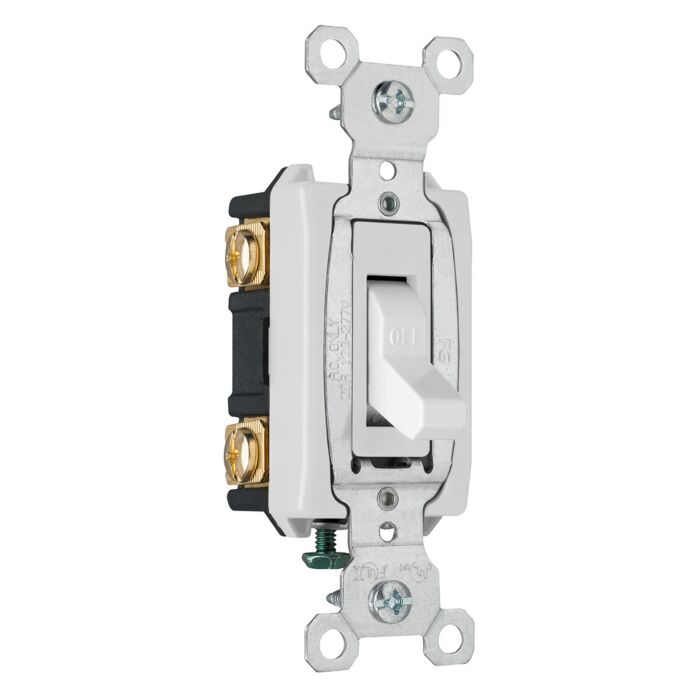

Hard Use Grade Switch (White) 20A, 120/277V
SKU: CSB20AC2W
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$13.99
Features
Specifications
Downloads
This 2-pole switch features a durable design with a brass alloy contact arm and a corrosion-resistant steel strap. Its high-strength thermoplastic toggle resists damage, and heavy-duty bumpers ensure quiet operation. The back body is made of glass-reinforced nylon with a locking support. The cam design minimizes arcing and extends switch life, further enhanced by oversized silver alloy contacts. It includes tri-drive terminal and mounting screws. Compatible wall plate options include TradeMaster unbreakable, radiant screwless, and metal wall plates.
- High strength thermoplastic
- Smooth & quiet operation
- Tri-drive terminal & mounting screws included
- cULus listed
- One-piece brass alloy contact arm for reliable electrical performance
- One-piece steel strap with integral ground is plated for corrosion resistance
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
| Brand | Pass & Seymour |
|---|---|
| Date Added | Oct 30, 2025 |
| UPC | 785007126198 |
| Store Location (Lititz, PA) | Aisle 09, Section D4 |
| Package Length (in) | 1.07" |
| Package Width (in) | 1.32" |
| Package Height (in) | 3.28" |
| Manufacturer Part Number | CSB20AC2WCC6 |
| Color | White |
| Type | Switch |
| Material | Thermoplastic |
| Finish | Matte |
| Country Of Origin | Mexico |
| Features | Single Piece Plated Steel Mounting Strap |
| Wall Plate Included | No |
| Number of Switches | 1 |
| Switch Type | Toggle |
| UPC Number | 785007126198 |
| Product Depth US | 1.073 in |
| Product Height US | 3.281 in |
| Product Width US | 1.32 in |
| cULus Listed | Yes |
| Amperage | 20 A |
| Connection Location | Back and Side |
| Requires Neutral Wire | No |
| Wire Connection Type | Screw Terminals |
| Indoor/Outdoor | Indoor |
| Load Rating | 20 A @ 120/277 VAC |
| Mounting Type | Wall Box |
| Number of Poles | Double Pole |
| Throw Type | Double Throw |
| Terminal Accommodation | #14 AWG - #10 AWG |
| Voltage | 120 VAC, 277 VAC |
