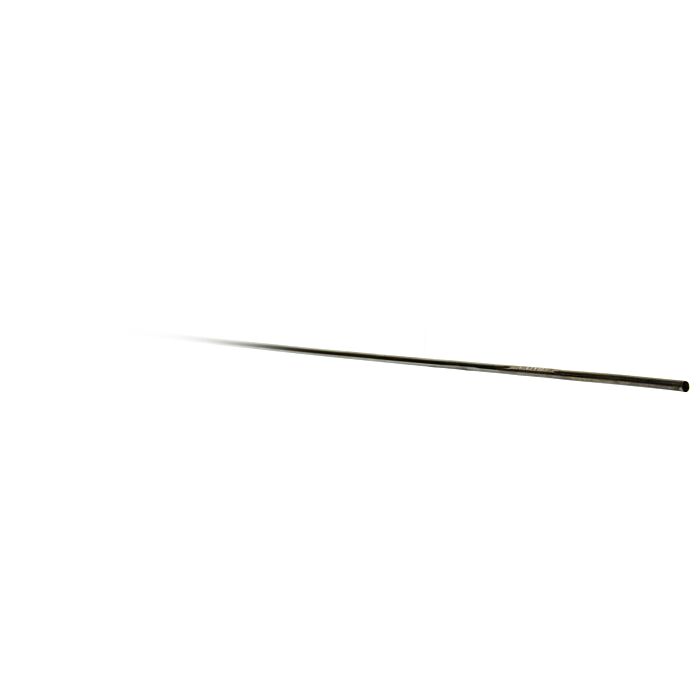

24 Stick Tube 20 in Phos-Copper Brazing Alloy
SKU: HA15520S1
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$159.99
/ LB
/ LB
Features
Specifications
STAY-SILV® 15 phos-copper filler metal is the industry standard for air conditioning/refrigeration applications. Its melting range is useful in filling wider clearances while providing good service ductility. Conforms to the EU Reach & RoHS directive.
- Popular choice for copper brazing of air conditioning and refrigeration connections
- Flows into tight connections when heated above its liquidus temperature
- Excellent for situations where close fit-up does not exist and where thermal expansion and service vibration are involved
- Wide melting range allows the operator to fill loose connections
- Recommended joint clearance of 0.003 in - 0.006 in (0.08mm - 0.15mm)
- Use STAY-SILV® white flux to braze brass or copper-to-brass
- Corrosion resistance is generally similar to the copper base metal, but phosphorus containing alloys, including STAY-SILV® 15, should not be used if the braze is exposed to sulfur or sulfur compounds in service
- Not recommended for brazing steel or other ferrous metals due to sufficient lack of joint ductility
- Suitable for brazing low nickel (10% maximum) copper/nickel base metals
- Conforms to the EU Reach & RoHS directive
| Brand | HARRIS |
|---|---|
| UPC | 877511005578 |
| Store Location (Lititz, PA) | Aisle 05, Section M5 |
| Manufacturer Part Number | 15520R1 |
| Series | Stay-Silv |
| Container Size | 24 Stick |
| Container Type | Tube |
| Diameter | 3/32 in |
| Length | 20 in |
| Composition | low Nickel (10% maximum) Copper/Nickel Base Metals |
