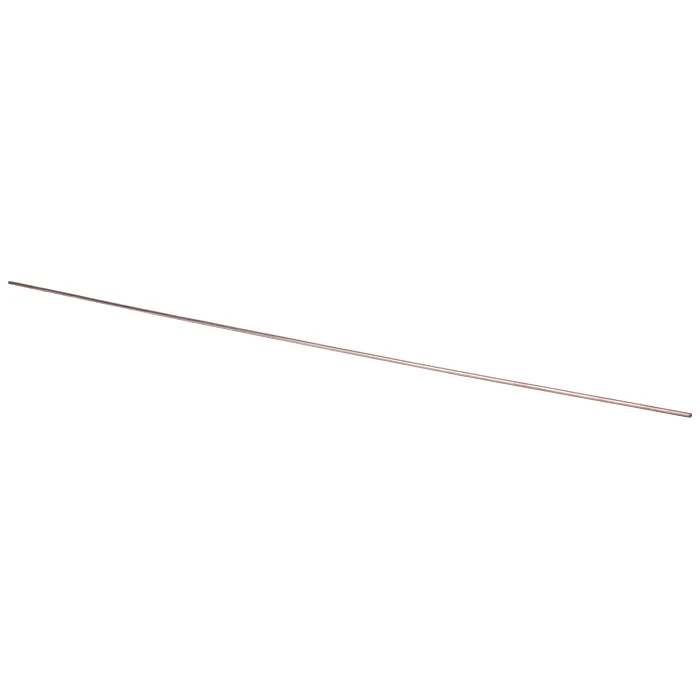

24 Stick Tube 20 in Phos-Copper-Silver Filler
SKU: HA5520R1
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$129.99
/ LB
/ LB
Features
Specifications
Stay-Silv 5 is a medium-range alloy that is well suited where close fit-up cannot be maintained. This filler metal is somewhat more ductile than Harris 0 or Stay-Silv 2.
- Medium-range silver brazing alloy
- More ductile than Harris0 or Stay-Silv® 2
- A frequent choice for brazing copper as it is self-fluxing
- Can be used to braze brass with the use of Stay-Silv® white brazing flux
- Well suited where close fit-up cannot be maintained
- Wide melting range allow the operator to fill loose connections
- Corrosion resistance is generally similar to copper base metal, but due to its phosphorus content should not be used if the braze is exposed to sulfur or sulfur compounds in service
- Not recommended for brazing steel or other ferrous base metals
- Conforms to the EU Reach & RoHS directive
| Brand | HARRIS |
|---|---|
| UPC | 877511005493 |
| Store Location (Lititz, PA) | Aisle 05, Section M5 |
| Manufacturer Part Number | 5520R1 |
| Series | Stay-Silv |
| Container Size | 24 Stick |
| Container Type | Tube |
| Diameter | 3/32 in |
| Length | 20 in |
| Temperature Rating | 1350 to 1550 deg F |
| Composition | 5.9% Phosphorus, 5% Silver, Copper Balance and 0.15% Other |
| For Joining Material | Copper/Brass, Copper to Copper |
