Haven's® Grip for Wire Rope 0.75-Inch
SKU: CG34
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$184.99
Features
Specifications
Downloads

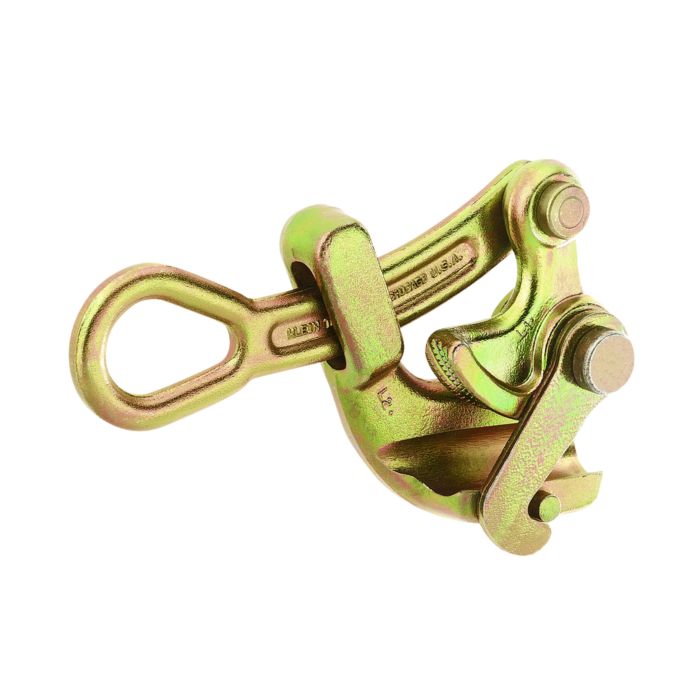

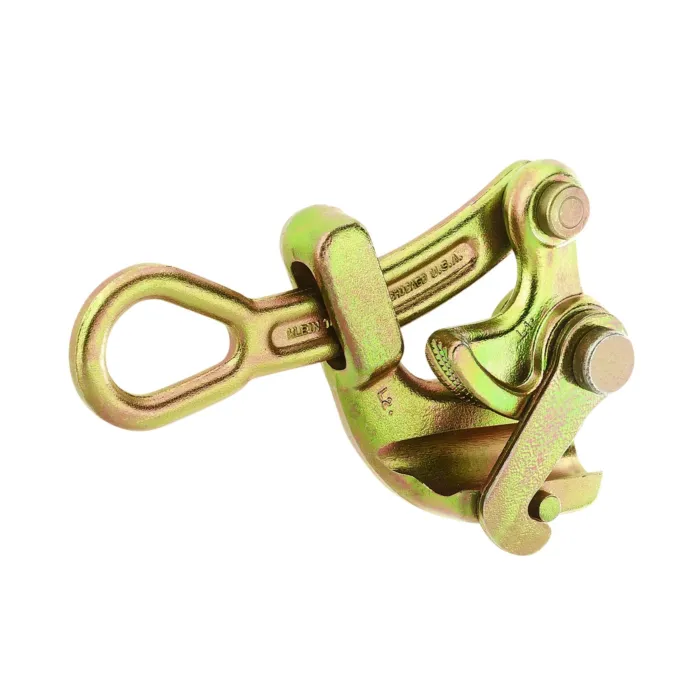

The Klein Tools 1625 Series Wire Rope Haven's® Grips are designed for use when a light, compact grip is desired and where cable deformation is not a factor. This grip also comes with a swing latch to help hold cable in the jaw. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
- Always match proper size and type of grip to application.
- Grips are to be used for temporary installation, not for permanent anchorage.
- Designed for use when light, compact grip is desired and where conductor damage is not a factor
- Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
- Max Safe Load of 8000-Pound (3629 kg)
- Manufactured from drop-forged, heat-treated steel for excellent durability
- Made in USA
| Brand | Klein Tools |
|---|---|
| UPC | 092644472206 |
| Store Location (Lititz, PA) | Aisle 13, Section I1 |
| Package Length (in) | 2.50" |
| Package Width (in) | 4.25" |
| Package Height (in) | 10.00" |
| Manufacturer Part Number | 1625-20 |
| Cable Type | EHS, Guy Strand, Messenger |
| Material | Steel |
| Type | Haven's Grip |
| Cable Diameter | 0.28" to 0.75" (7.11 to 19.05 mm) |
| Jaw Type | Curved |
| Application | Wire Pulling |
| Hot Latch | No |
| Locking Handle | No |
| Spring | No |
| Swing Latch | No |
| Teeth Type | Aggressive |
| Weight (kg) | 1.6 |
| Jaw Length (cm) | 0.6 |
| Maximum Safe Load (lb) | 8000 |
| Jaw Length (Inch) | 0.25 |
| Maximum Safe Load (kg) | 3628.7 |
| Weight (lb) | 3.5 |
| Height | 1.8000 in |
| Width | 3.8250 in |
| Depth | 6.0750 in |
| Weight | 3.4920 lbs |
