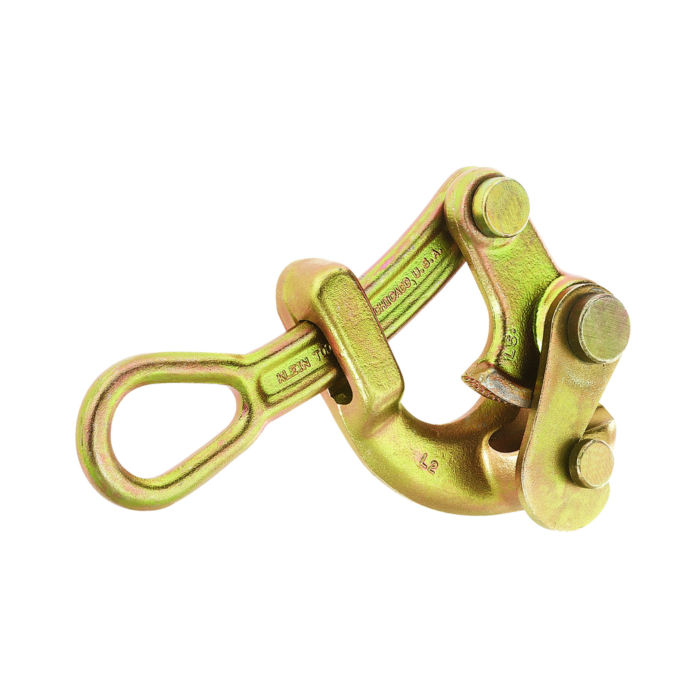

Haven's® Grip with Swing Latch
SKU: CG12
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$159.99
Features
Specifications
Downloads
Klein Tools' 1604 Series Messenger and Guy Strand Haven's® Grips are designed for use when a light, compact grip is desired, and where cable deformation is not a factor. They are recommended for use with steel strand cables. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
- Designed for use when a light, compact grip is desired and where conductor damage is not a factor
- Works with Messenger and Guy Strand cable diameter range of 0.125 to 0.500-Inch (3.18 to 12.70 mm)
- Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
- Swing latch helps hold cable in the jaw; maximum safe load is 5000-Pound (2268 kg)
- Made in USA
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
- Always match proper size and type of grip to application.
- Grips are to be used for temporary installation, not for permanent anchorage.
| Brand | Klein Tools |
|---|---|
| UPC | 092644472046 |
| Store Location (Lititz, PA) | Aisle 13, Section I1 |
| Package Length (in) | 2.00" |
| Package Width (in) | 4.00" |
| Package Height (in) | 9.00" |
| Manufacturer Part Number | 1604-20L |
| Type | Haven's Grip |
| Cable Type | EHS, Guy Strand, Messenger |
| Jaw Type | Curved |
| Cable Diameter | 0.125" to 0.5" (3.18 to 12.7 mm) |
| Application | Wire Pulling |
| Material | Steel |
| Hot Latch | No |
| Locking Handle | No |
| Spring | No |
| Swing Latch | Yes |
| Teeth Type | Aggressive |
| Overall Width (Inch) | 1.75 |
| Overall Width (cm) | 4.4 |
| Overall Height (cm) | 9.9 |
| Weight (kg) | 1.2 |
| Jaw Length (cm) | 0.6 |
| Overall Height (Inch) | 3.88 |
| Maximum Safe Load (lb) | 5000 |
| Jaw Length (Inch) | 0.25 |
| Maximum Safe Load (kg) | 2268 |
| Overall Length (Inch) | 8.75 |
| Weight (lb) | 2.6 |
| Overall Length (cm) | 22.2 |
| Height | 1.7600 in |
| Width | 4.7500 in |
| Depth | 6.3000 in |
| Weight | 0.1000 lbs |
