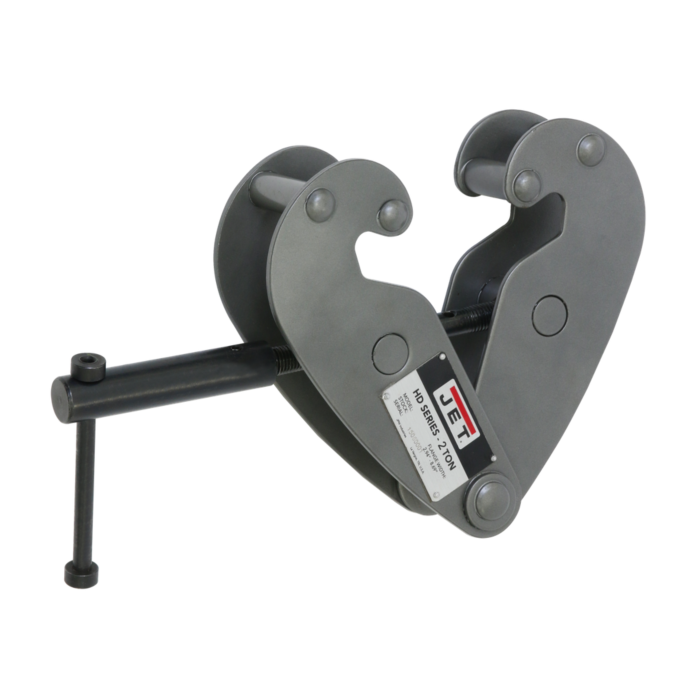

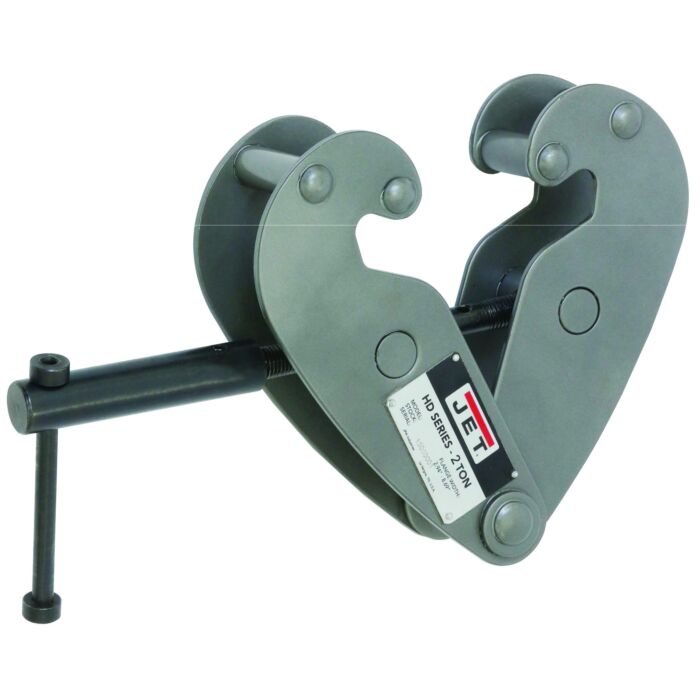

JET HD Series Beam Clamps come in capacities from 1 ton to 5 tons and can accommodate a beam up to 12 inches wide. Each JET Beam Clamp Jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams. Available up to 5 Ton capacities, the HD Series has a greater beam flange width for wider beams.
- Clamp jaw is designed to distribute the load away from the beam flange edge
- Clamp jaw is designed to distribute the load away from the beam flange edge, increasing safety
- Complies with ANSI / ASME B30.17 and B30.20 standards
- Load tested to 125% of capacity with certificate
- Used for quick mounting of a hoist on a broad range of beams up to 8-2/3 inches wide for increased versatility
- Welded all-steel frame and powder coat finish
- Welded all-steel frame and powder coat finish provide maximum durability and protection
Brand | JET Tools |
---|---|
UPC | 662755898013 |
Store Location (Lititz, PA) | Aisle 11, Section I1 |
Package Length (in) | 17.00" |
Package Width (in) | 3.60" |
Package Height (in) | 6.60" |
Manufacturer Part Number | JT9-202720 |
Country of Origin | China |
Length | 16.93 |
Width | 3.74 |
Height | 6.69 |
Weight | 13.0 |
Warranty | 2 Year |
Capacity (Lbs.) | 4400.0000 |
Load Capacity (Metric Tons) | 2.0000 |
Load Capacity (Tons) | 2 |
Maximum Beam Flange Width (In.) | 8-2/3 |
Minimum Beam Flange Width (In.) | 3 |
