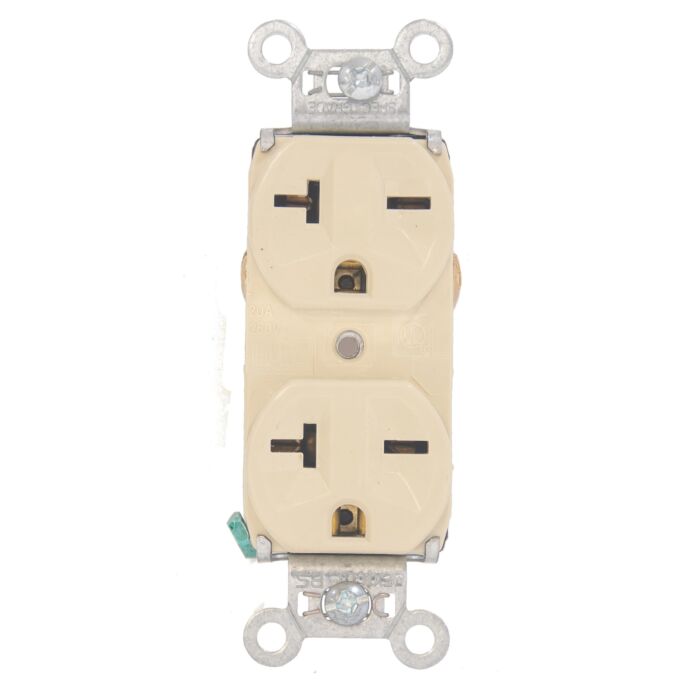

20A 250V Heavy Duty Spec-Grade Duplex Receptacle, Back and Side Wire, Ivory
SKU: E5862I
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$10.49
Features
Specifications
20A 250V Heavy Duty Spec-Grade Duplex Receptacle, Back and Side Wire, Ivory
- cULus Listed
- Federal Spec Listed
- Heavy-duty, brass strap for added strength and ground conductivity.
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
- Strap tabs wrap around face to prevent strap from separating from face and back body.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- High strength nylon face.
- Internal screw-pressure-plate back and side wired to accept #14 and #10 AWG stranded or solid copper or copper-clad conductors.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007549034 |
| Store Location (Lititz, PA) | Aisle 09, Section D3 |
| Package Length (in) | 1.94" |
| Package Width (in) | 1.38" |
| Package Height (in) | 1.38" |
| Manufacturer Part Number | 5862I |
| Depth | 0.78 in |
| Color | Ivory |
| Height | 2.635 in |
| Product Line | Pass & Seymour |
| Width | 1.322 in |
| Country of Origin | Mexico |
| Amperage | 20.0 A |
| Voltage | 250.0 V |
| Standard | CSA C22.2 No. 42 |
| Number of Wires | 3.0 |
| Indoor/Outdoor | Indoor |
| Wire Size | 14 - 10 AWG |
| Wall Plate Included | No |
| Number of Receptacles | 2.0 |
| Outlet Type | Straight Blade |
| Number of Poles | Double Pole |
| Application Sector | Commercial |
| Features | Brass Mounting Strap |
| NEMA Configuration Code | 6-20R |
| Connection Location | Back and Side |
| Wire Connection Type | Screw Terminals |
| Warranty Type | 1-Year Limited Warranty |
| Operating Temperature Max | 60.0 °C |
| Operating Temperature Min | -40.0 °C |
| Operating Temperature | -40°-60°C |
| Dielectric Strength | Withstands 2000V minimum |
| Environmental Conditions | Flammability: UL94 V2 |
| Special Features | Heavy-duty, brass strap for added strength and ground conductivity. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Strap tabs wrap around face to prevent strap from separating from face and back body. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. High strength nylon face. Internal screw-pressure-plate back and side wired to accept #14 – #10 AWG stranded or solid copper or copper-clad conductors. Eight back wire holes. Auto-ground clip assures positive ground. |
